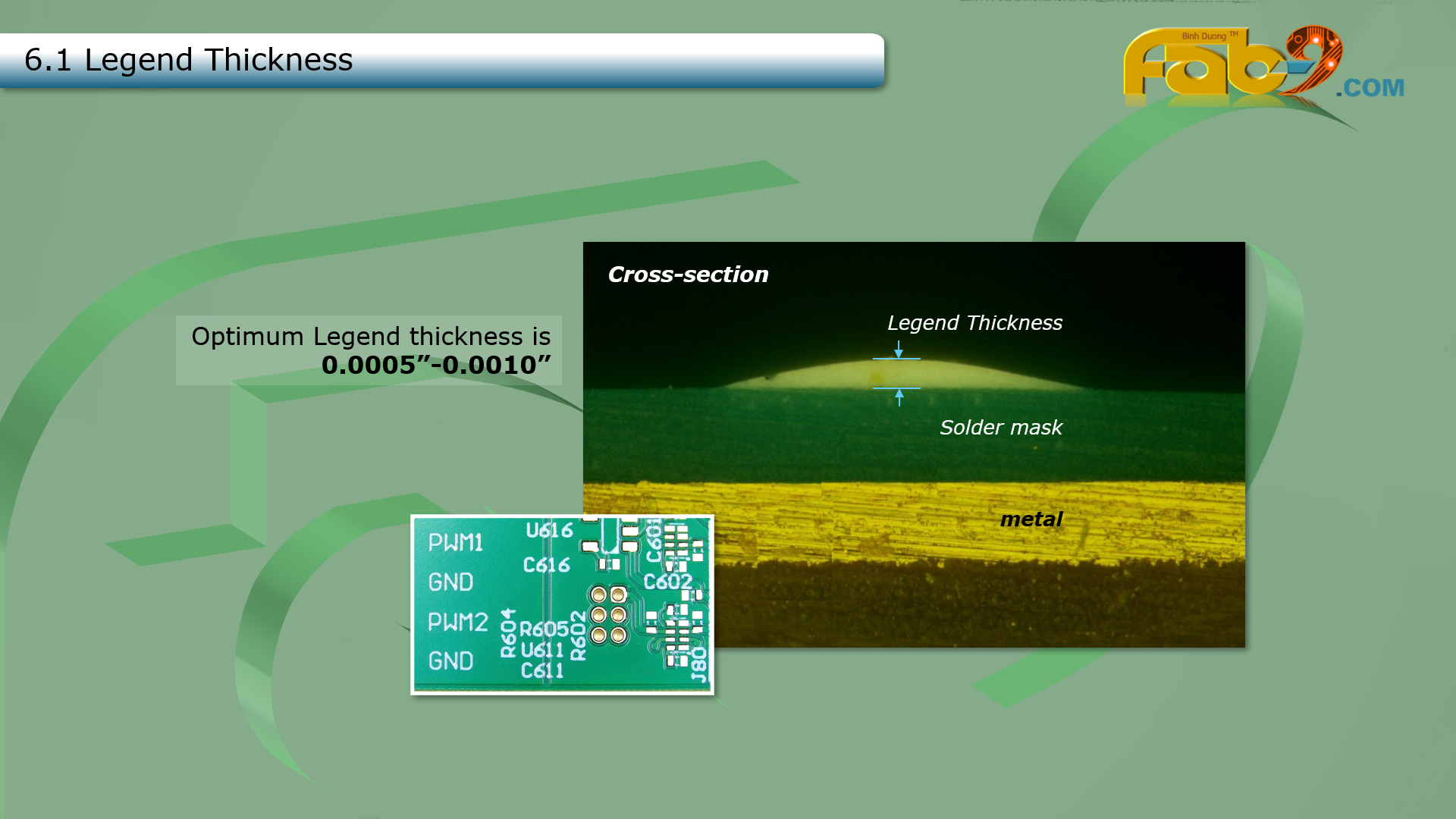

6.1 Legend Thickness
6.2 Application Methods

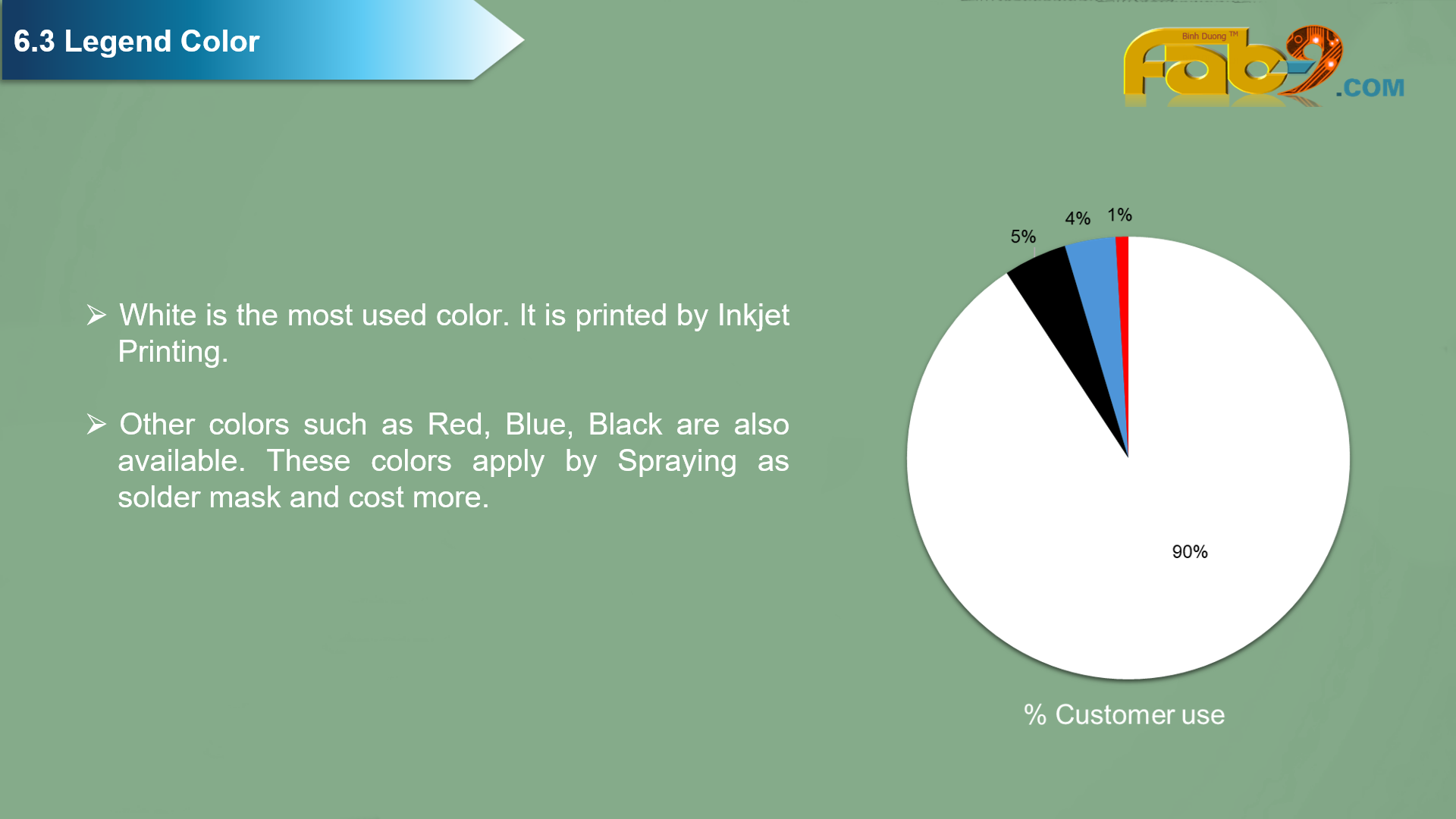

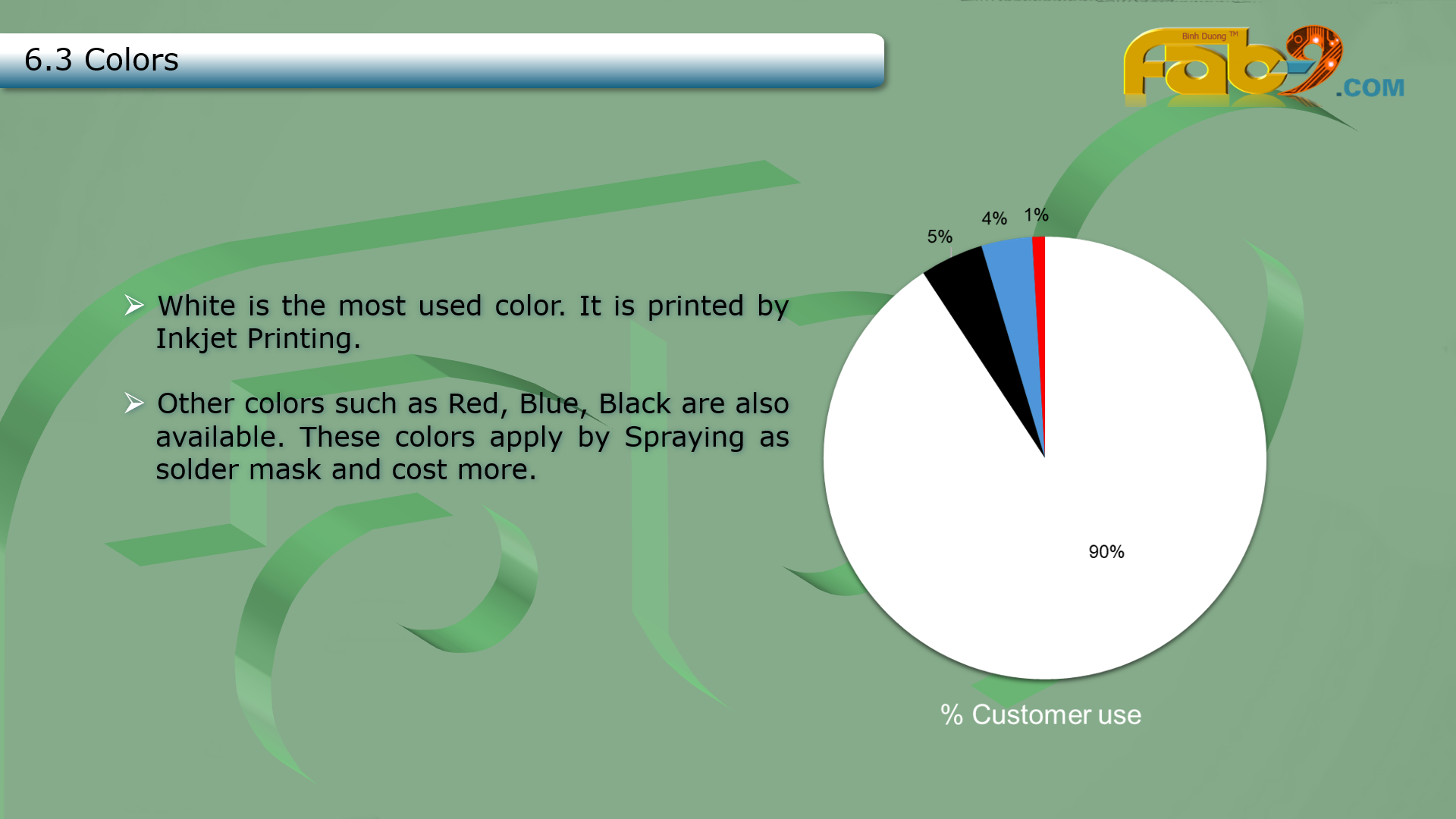

6.3 Colors

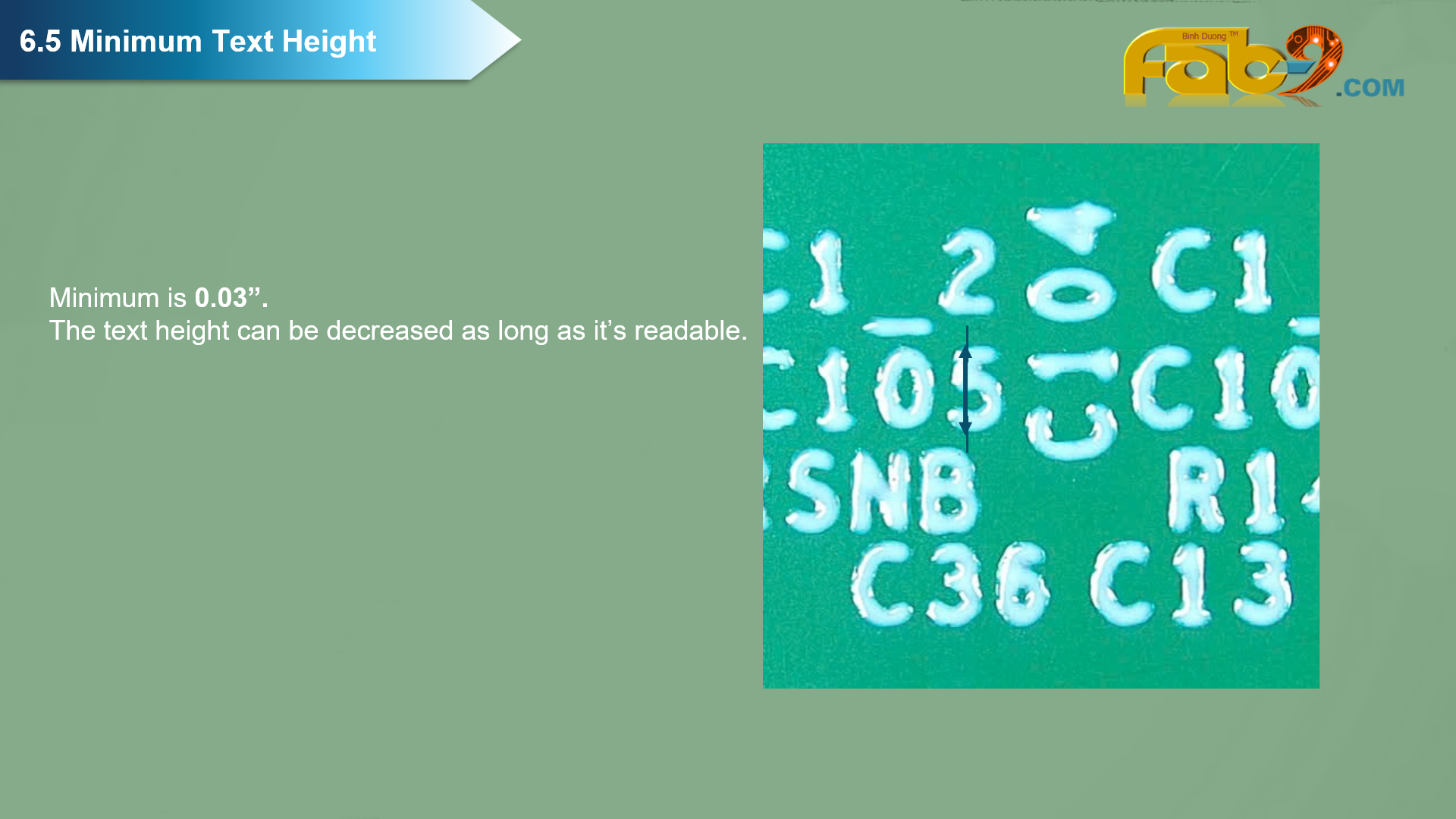

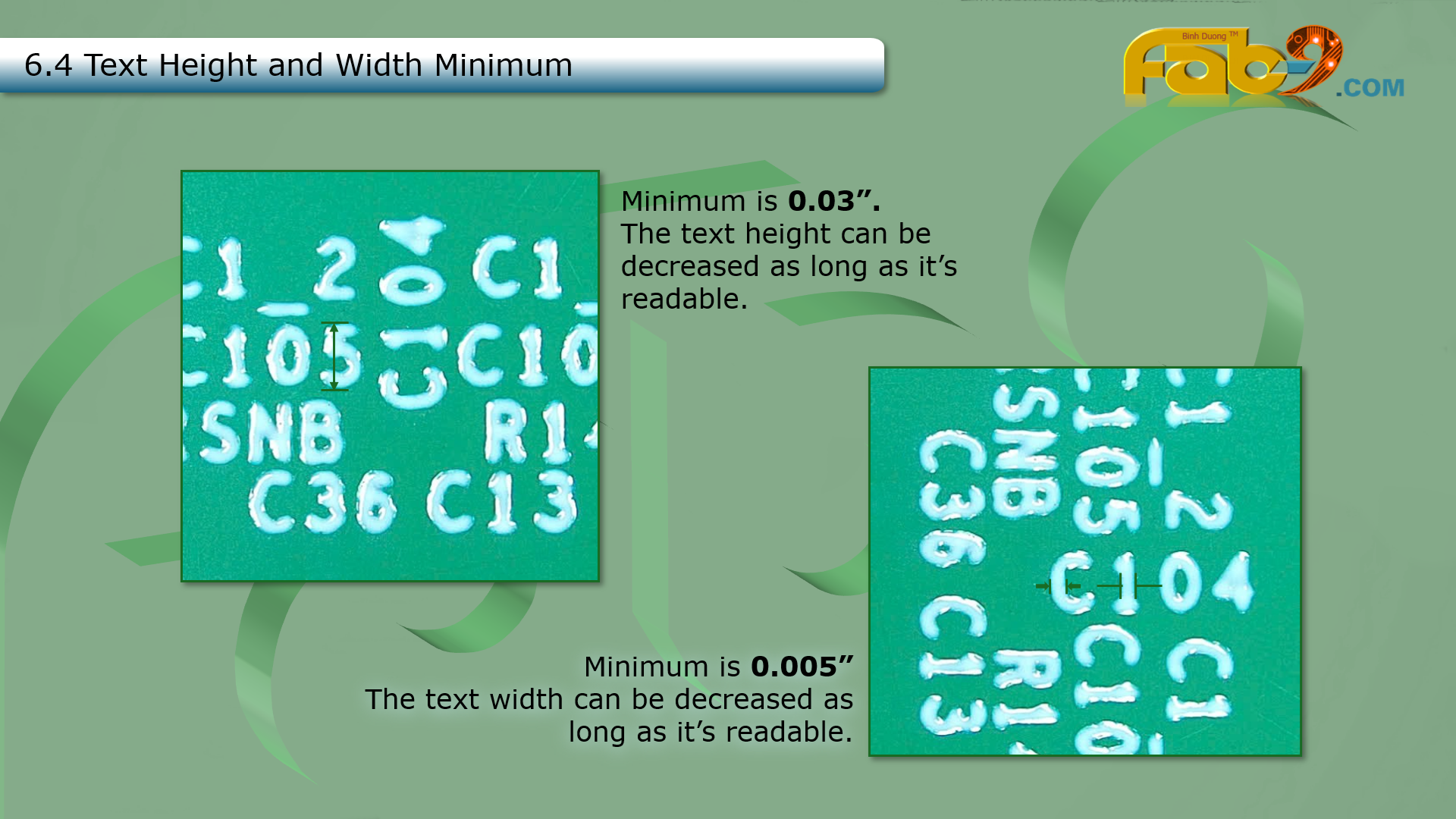

6.4 Text Height and Width Minimum

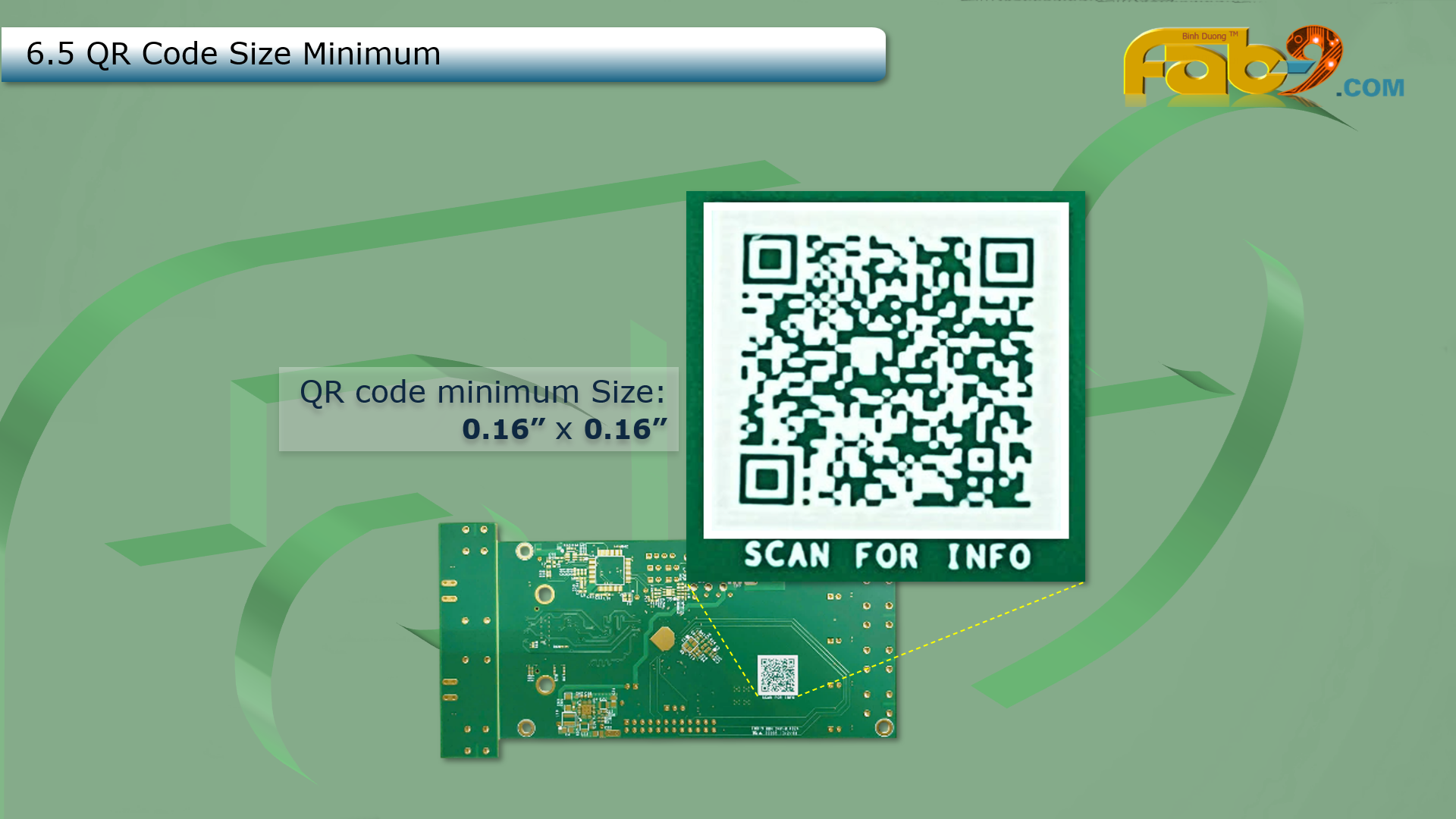

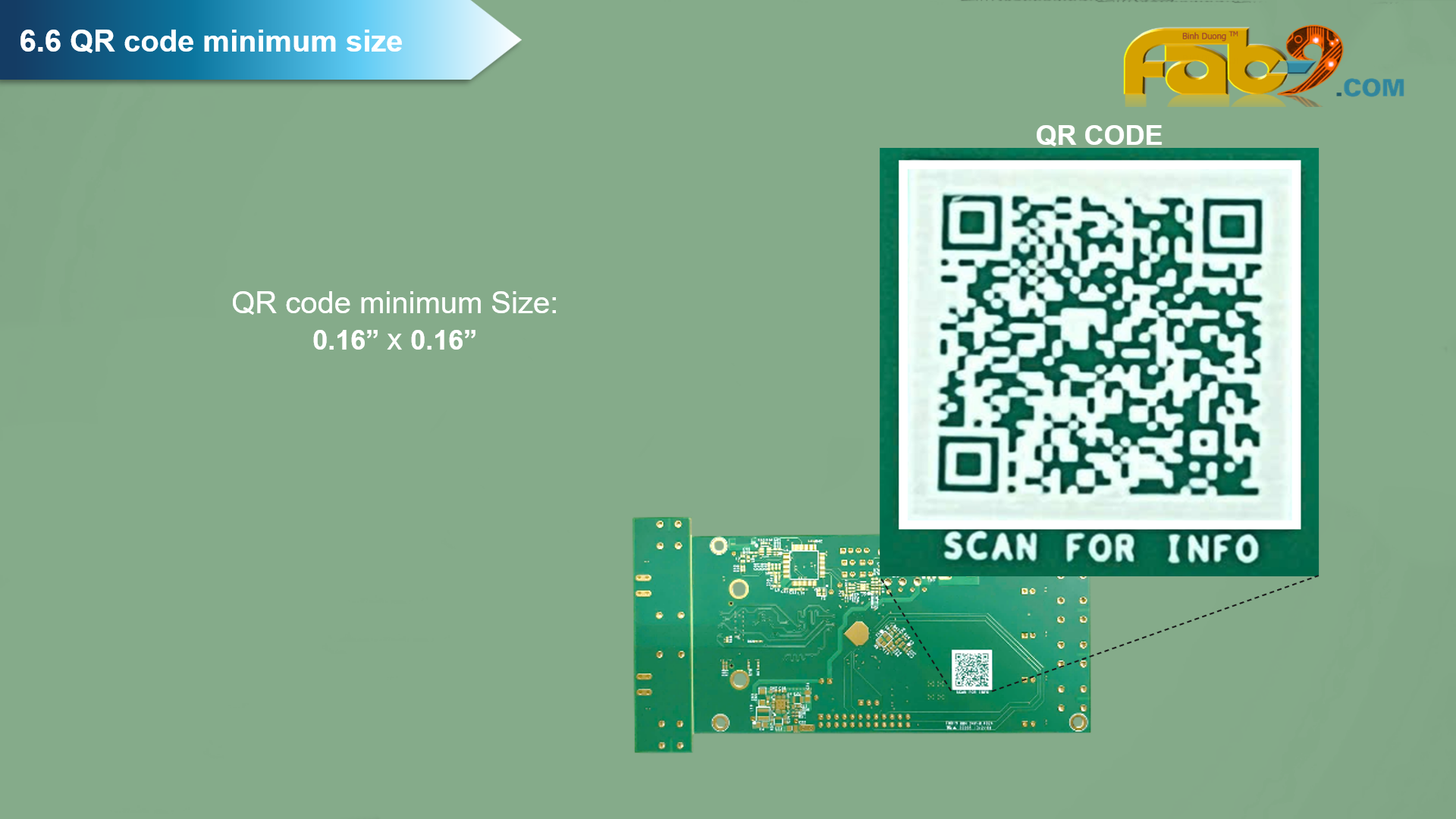

6.5 QR Code Size Minimum

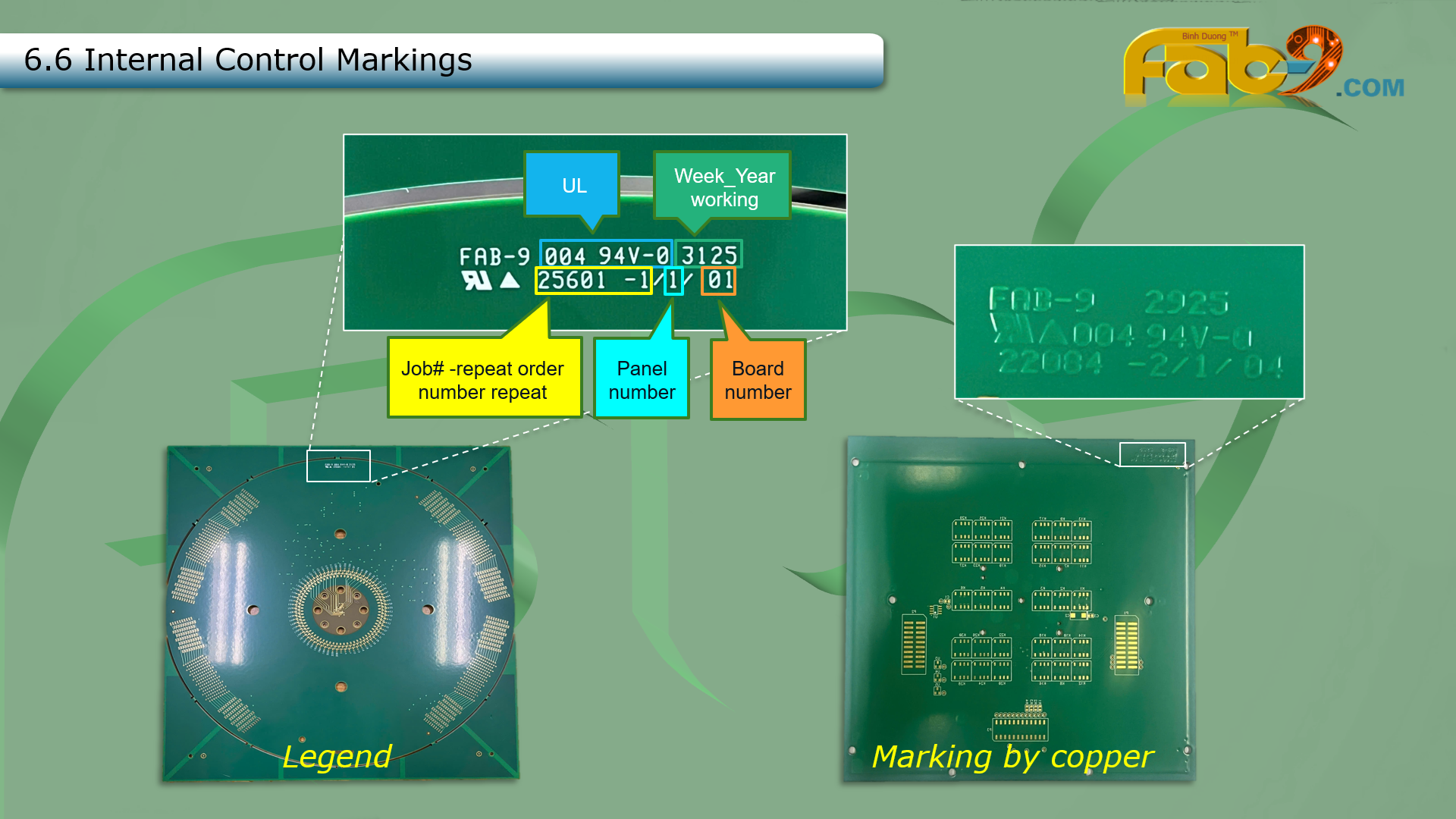

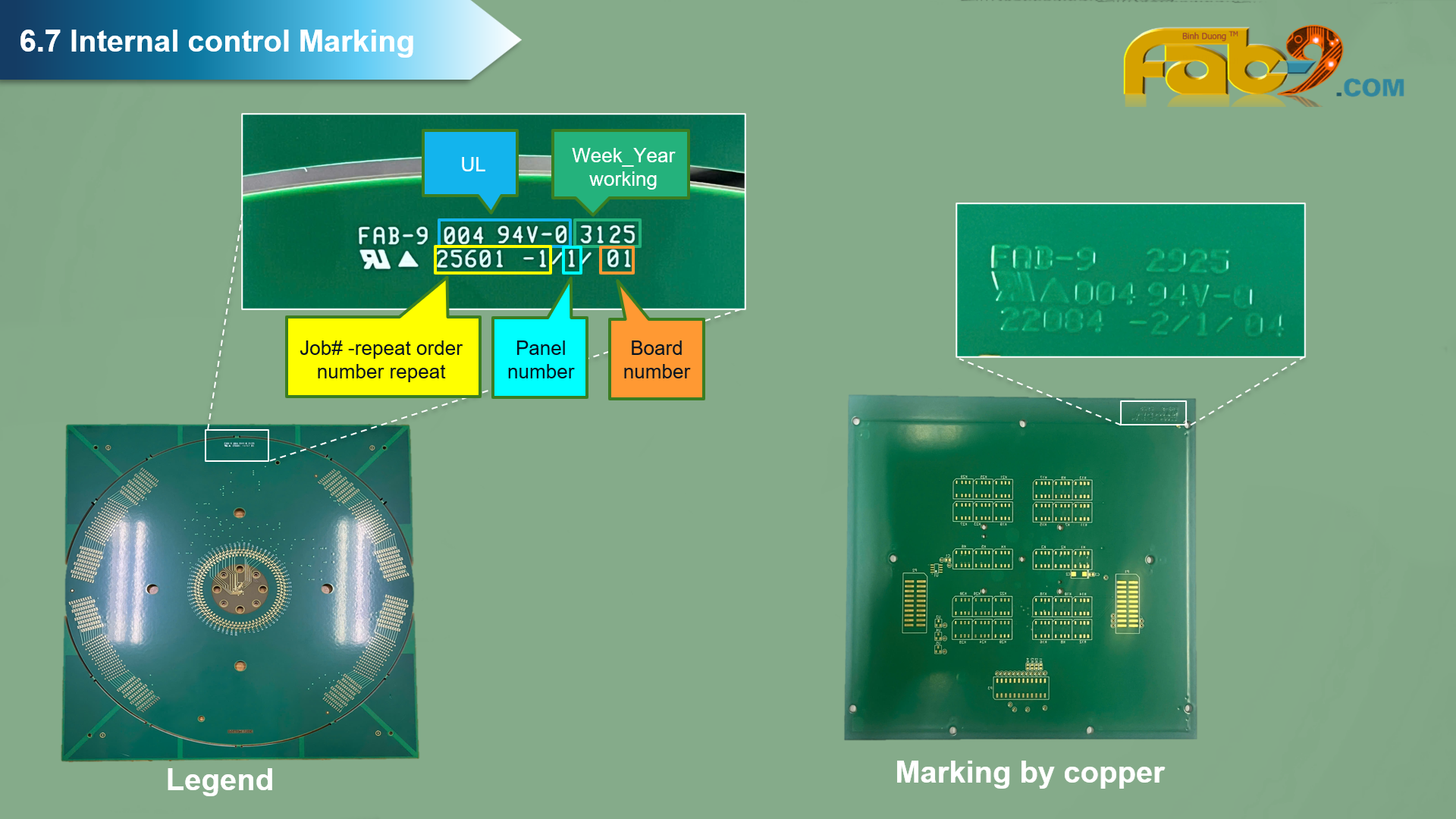

6.6 Internal Control Markings

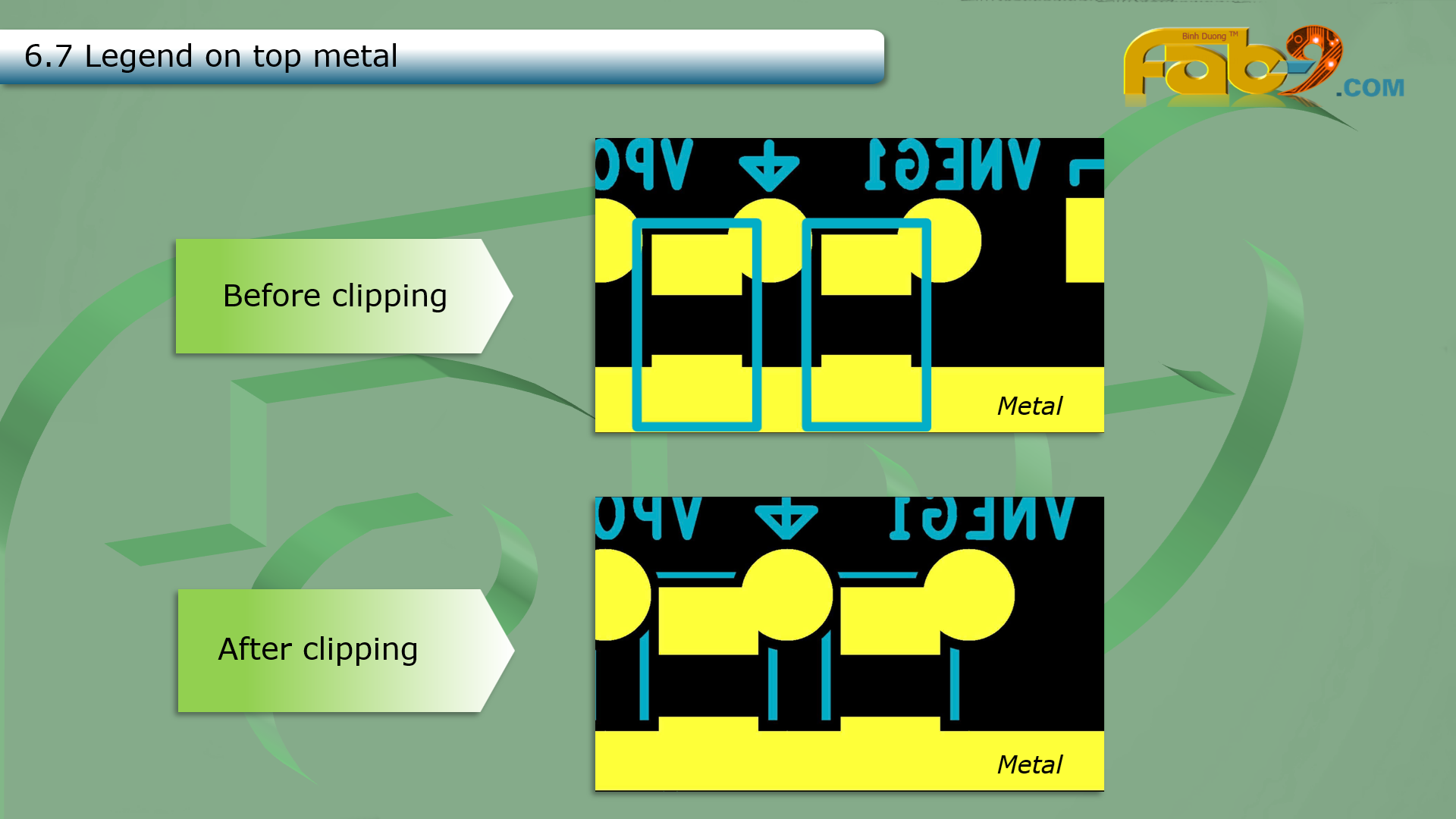

6.7 Legend on top metal

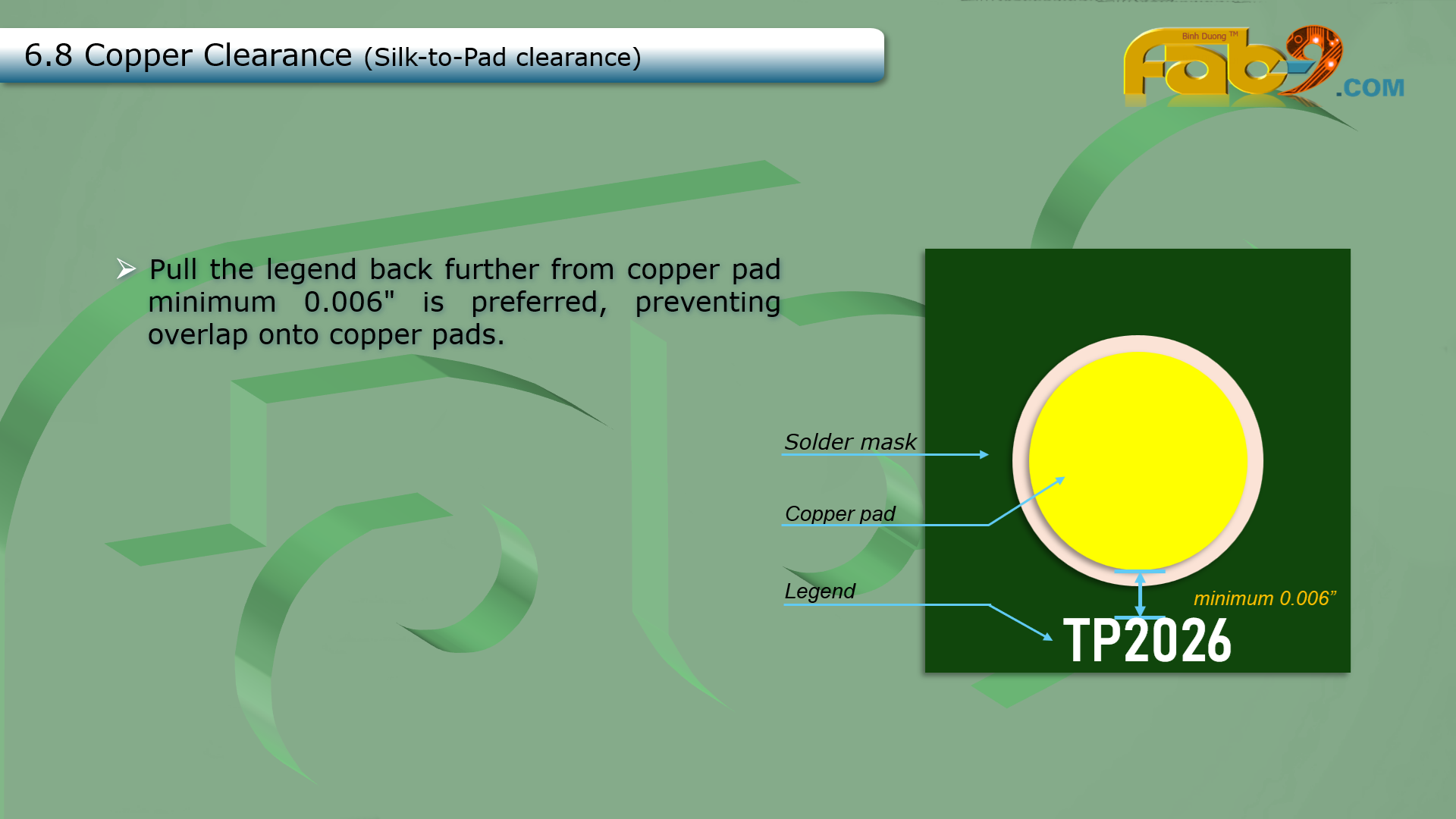

6.8 Copper Clearance (Silk-to-Pad clearance)
6.1 6.2 6.3 6.4 6.5 6.6 6.7 6.8
