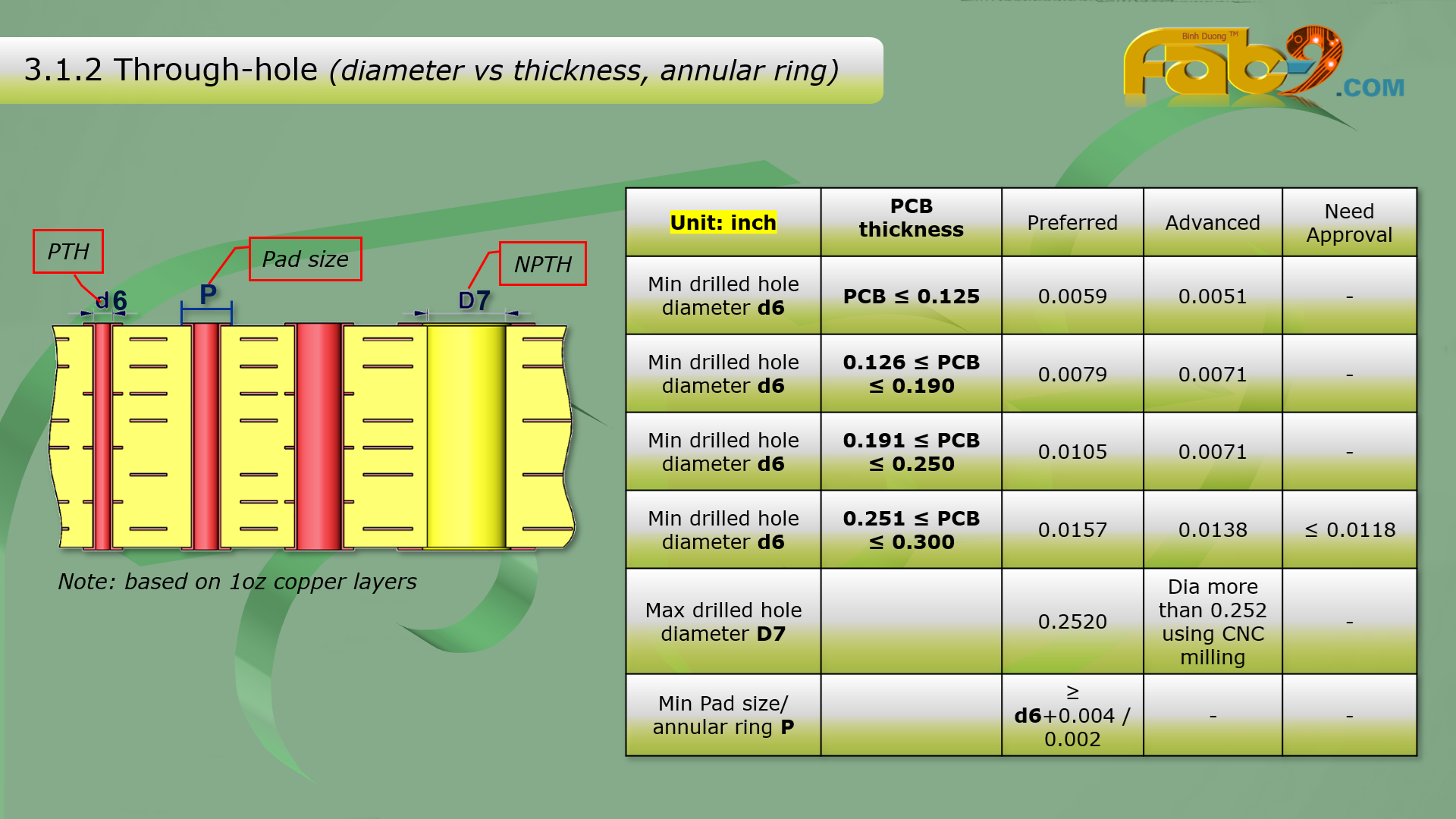

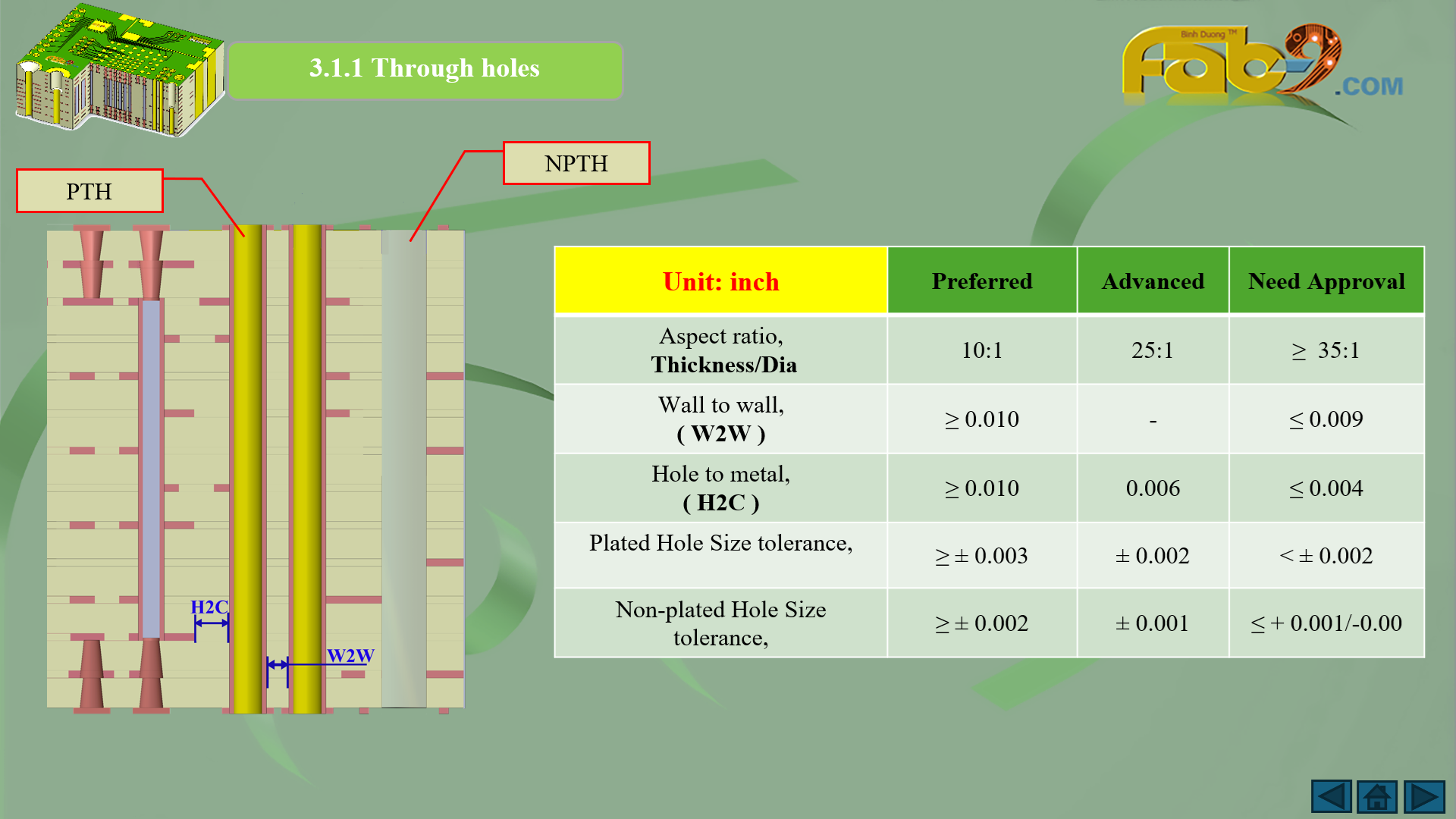

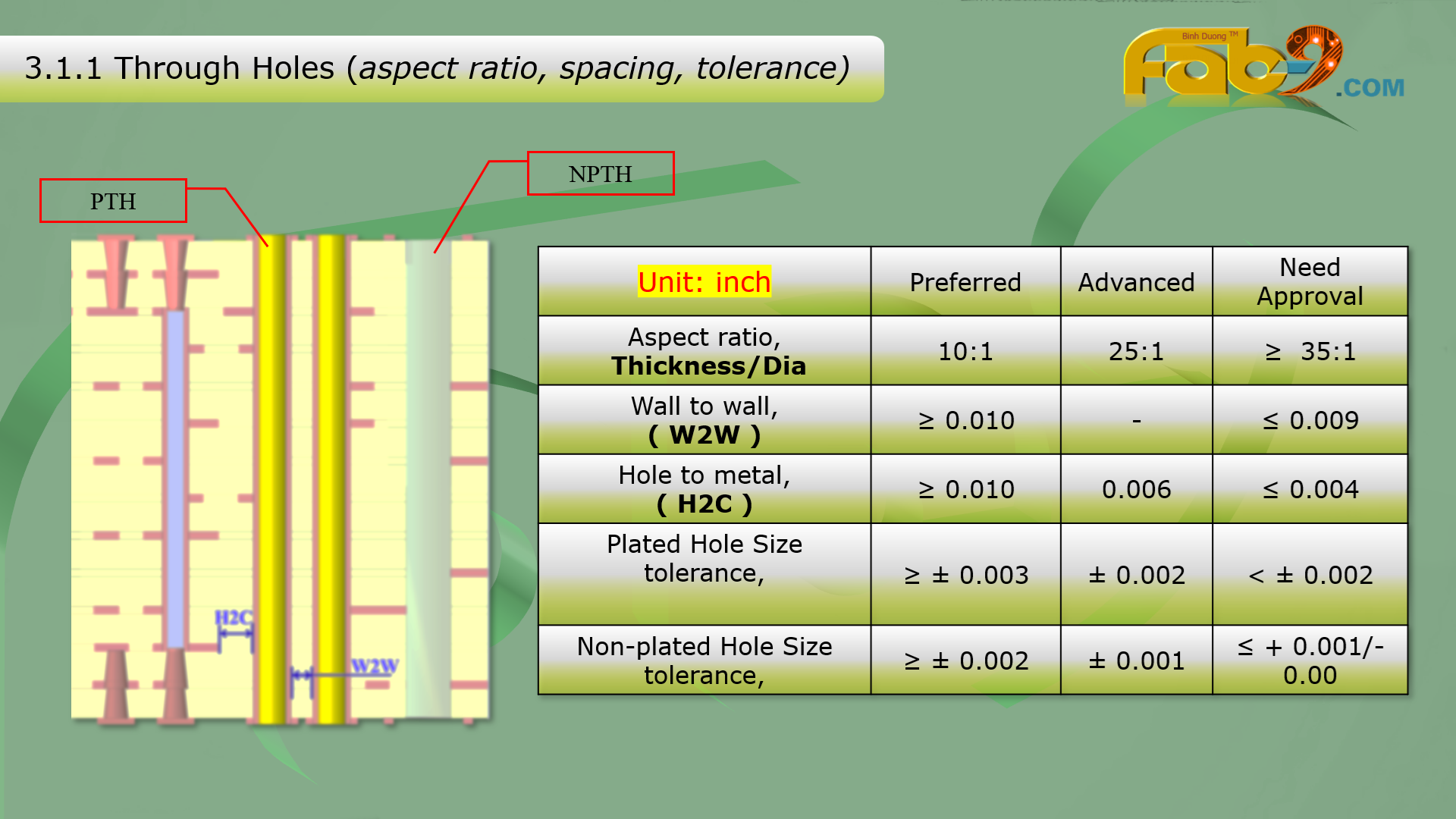

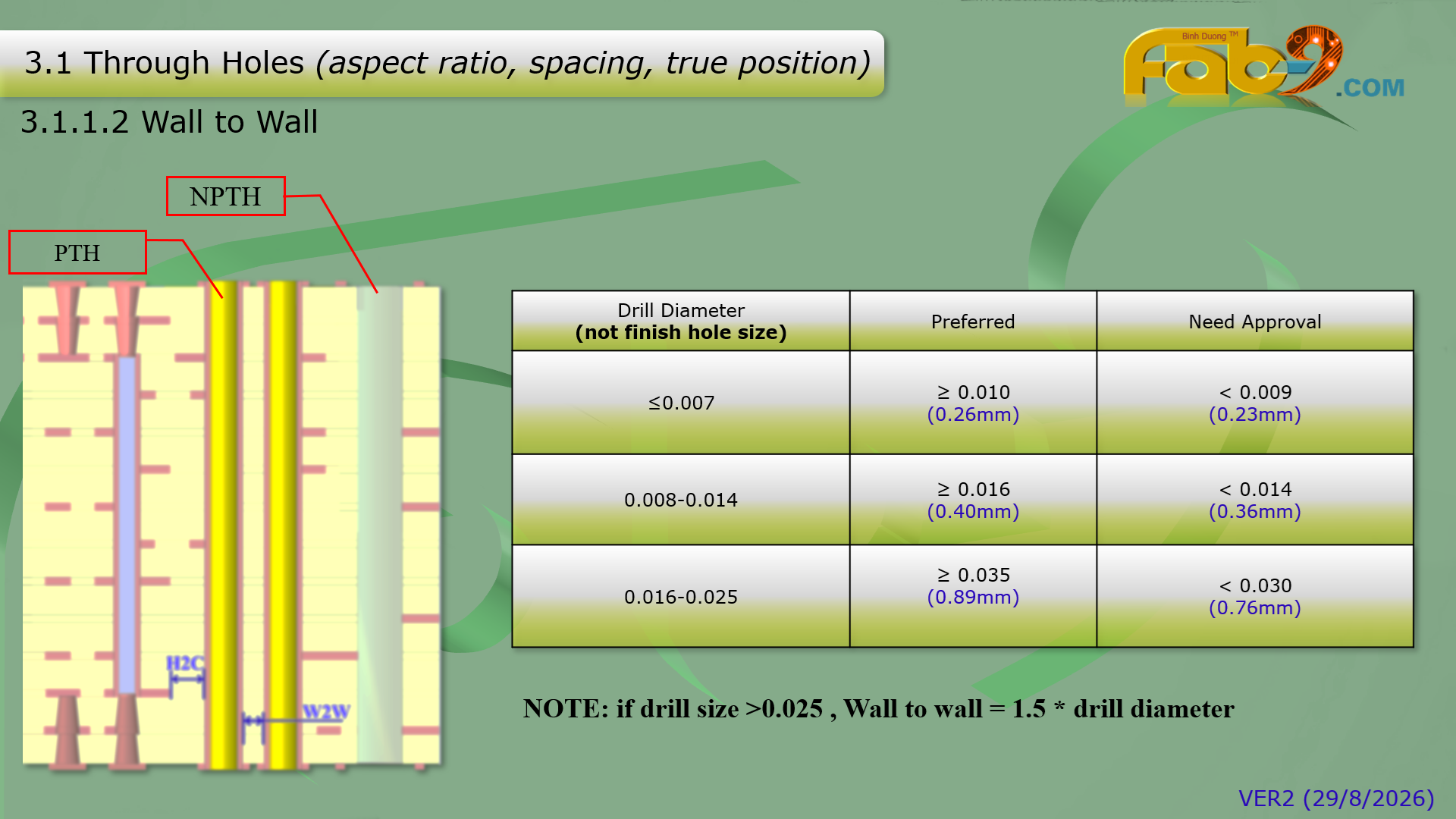

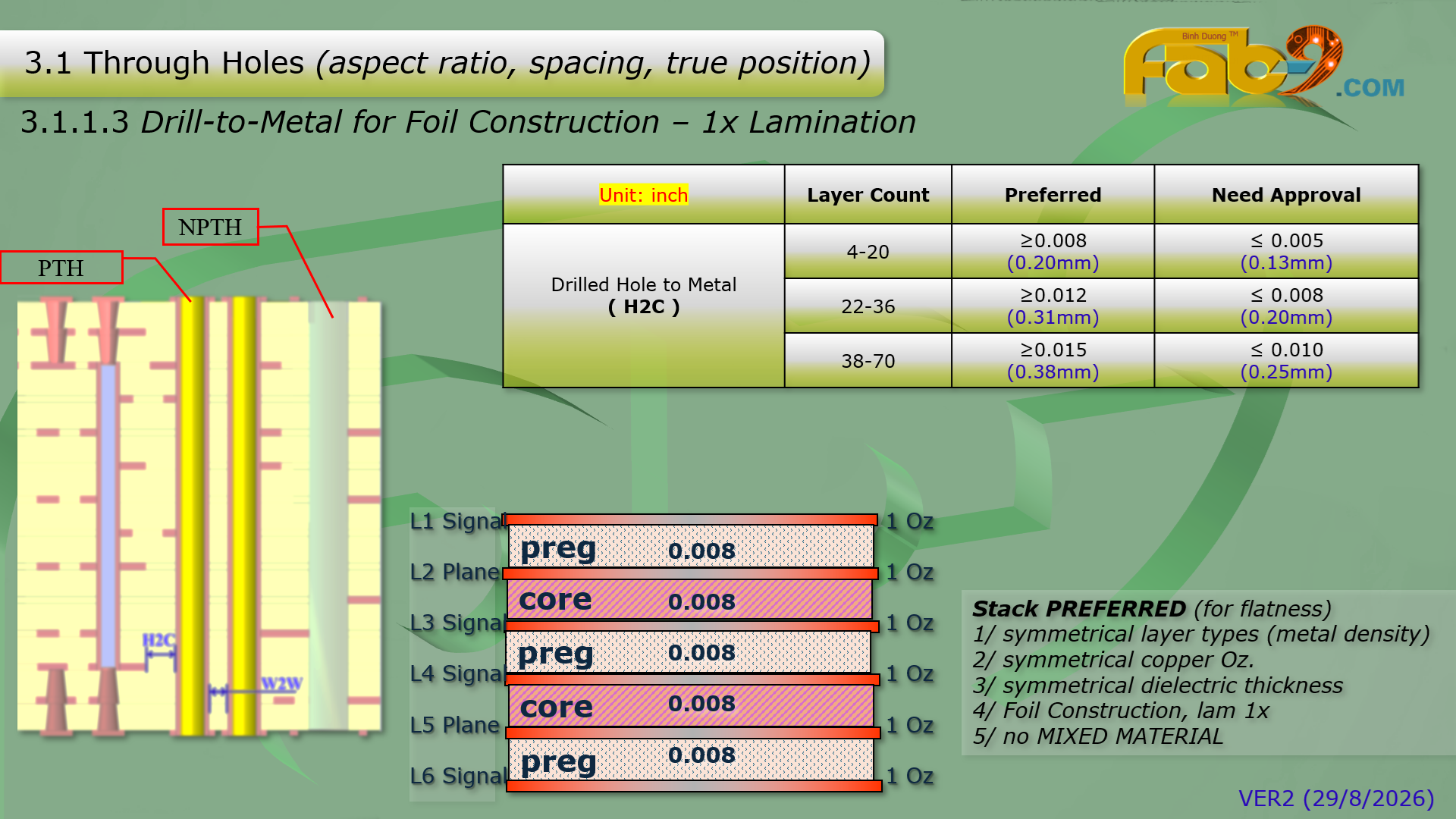

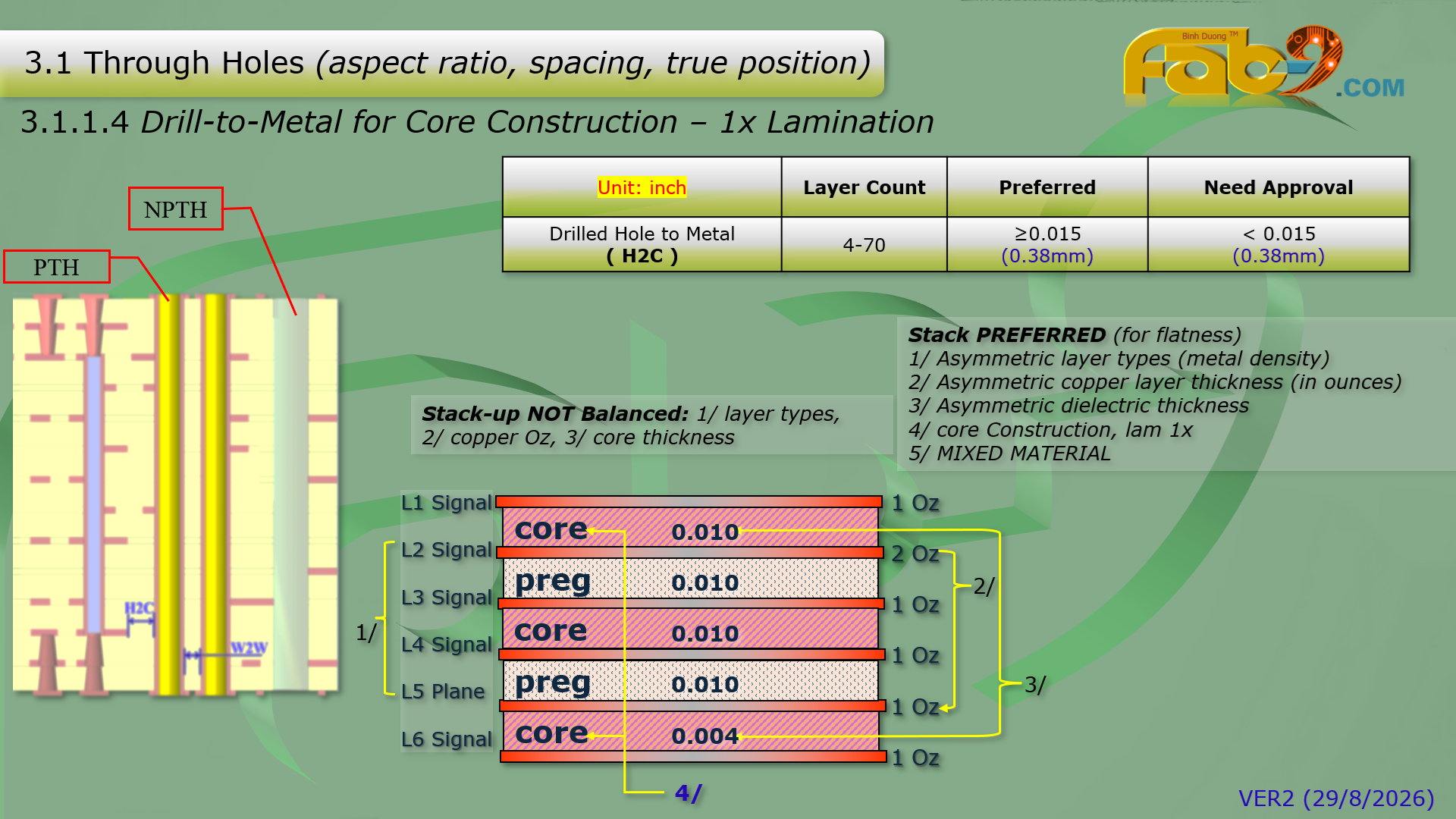

3.1 Through Holes (aspect ratio, spacing, true position)

3.2 Micro Vias and Blind Holes

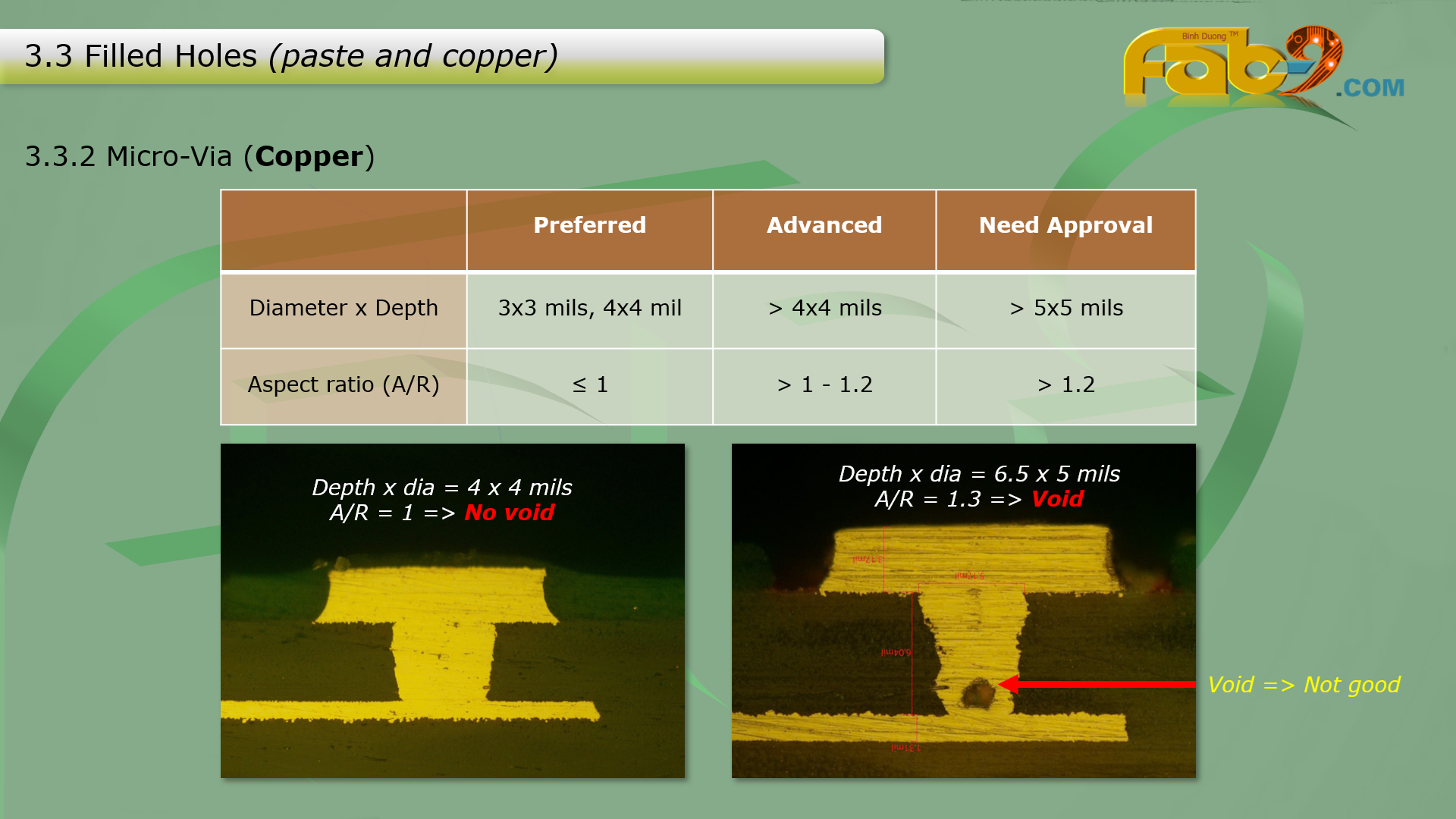

3.3 Filled Holes (paste and copper)

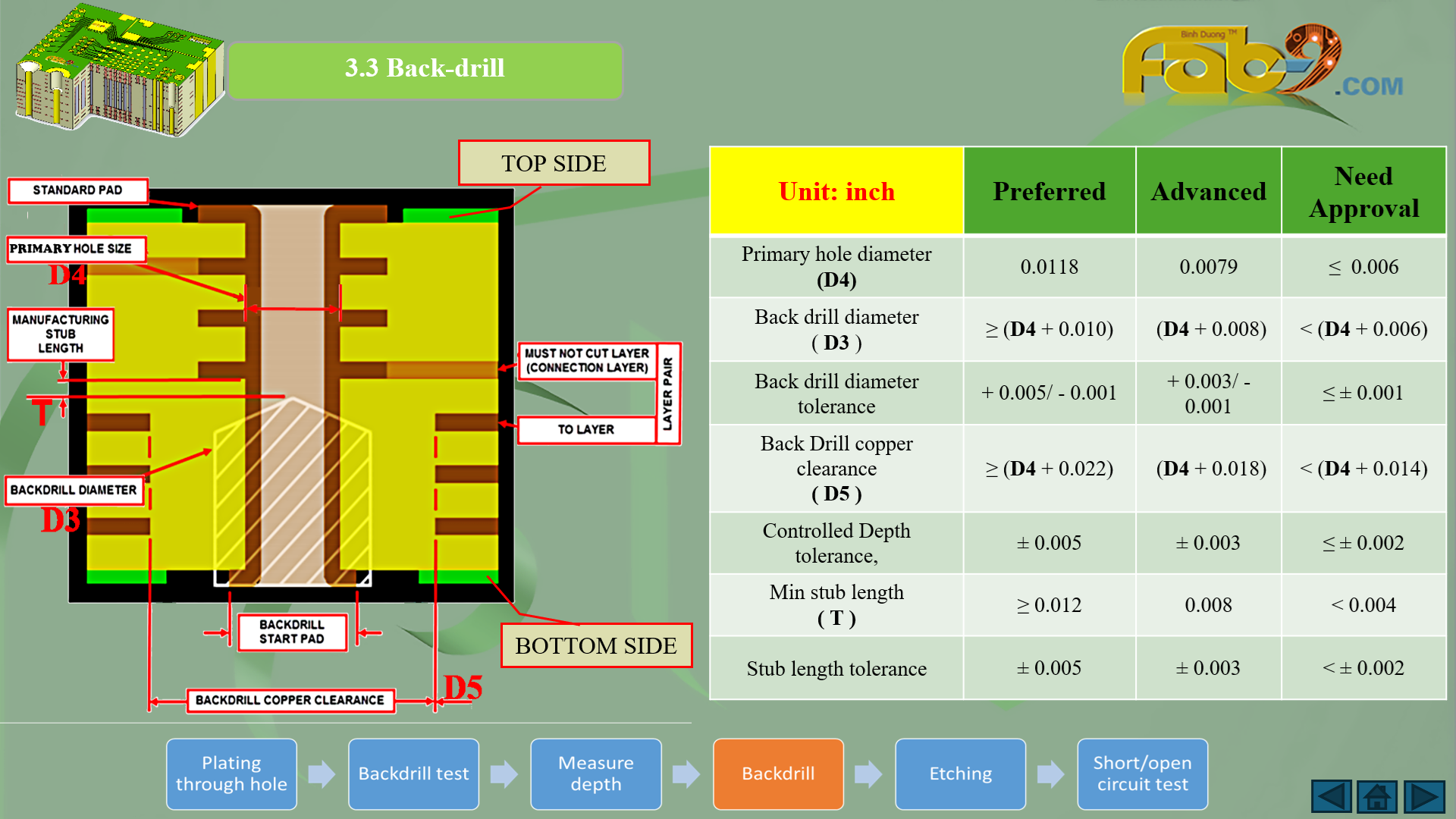

3.4 Back Drill

3.5 Counter Bore

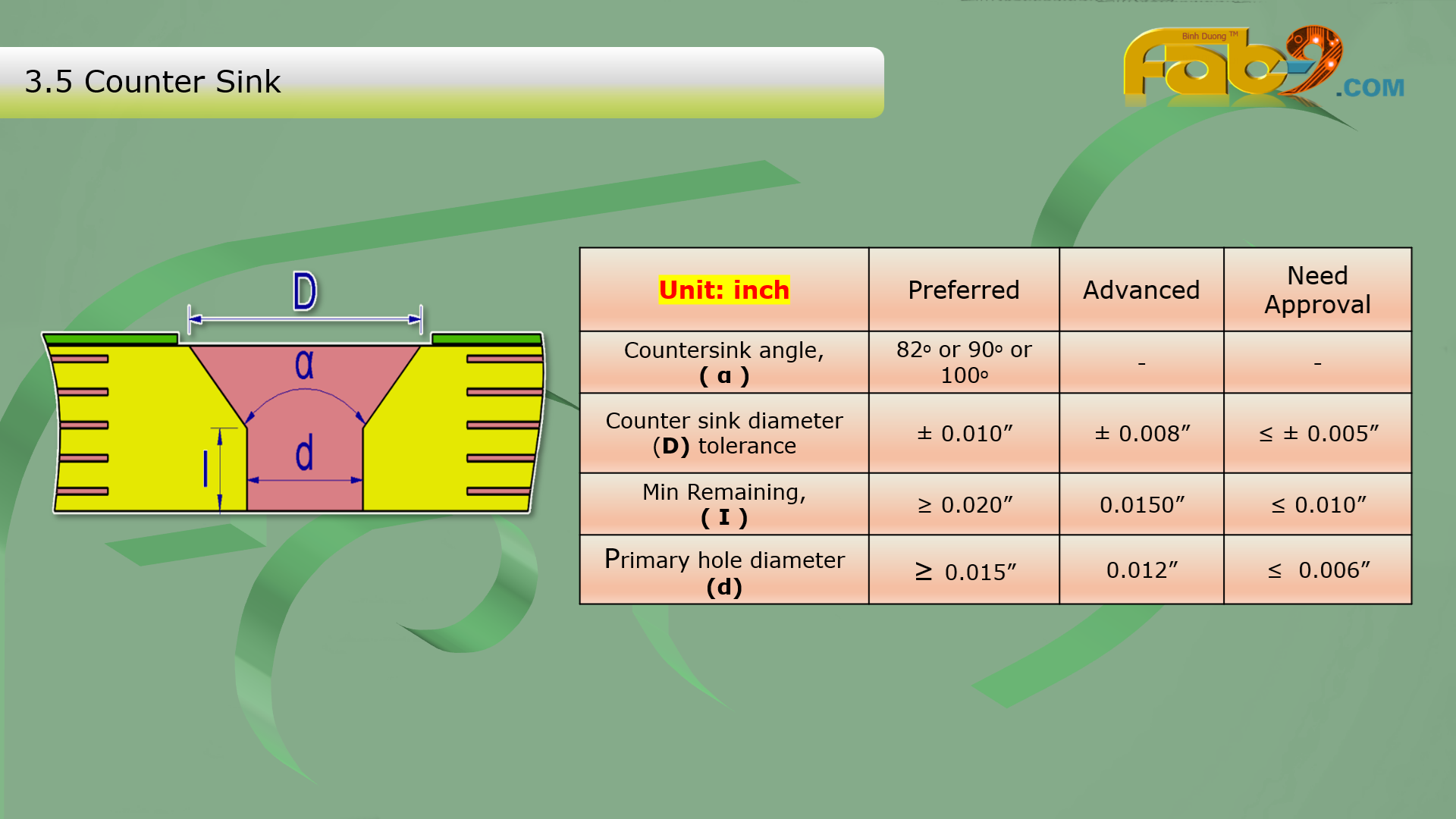

3.6 Counter Sink

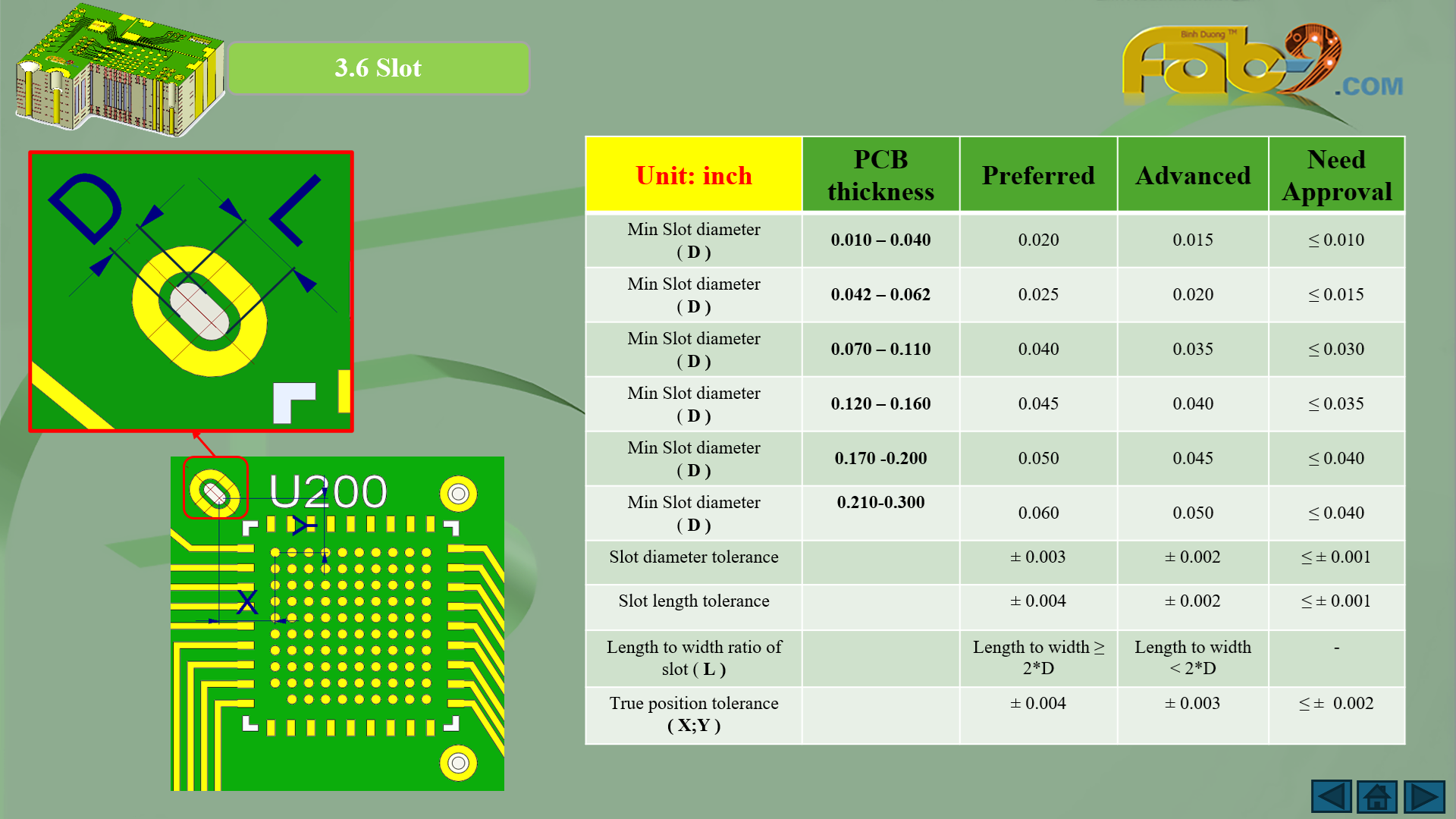

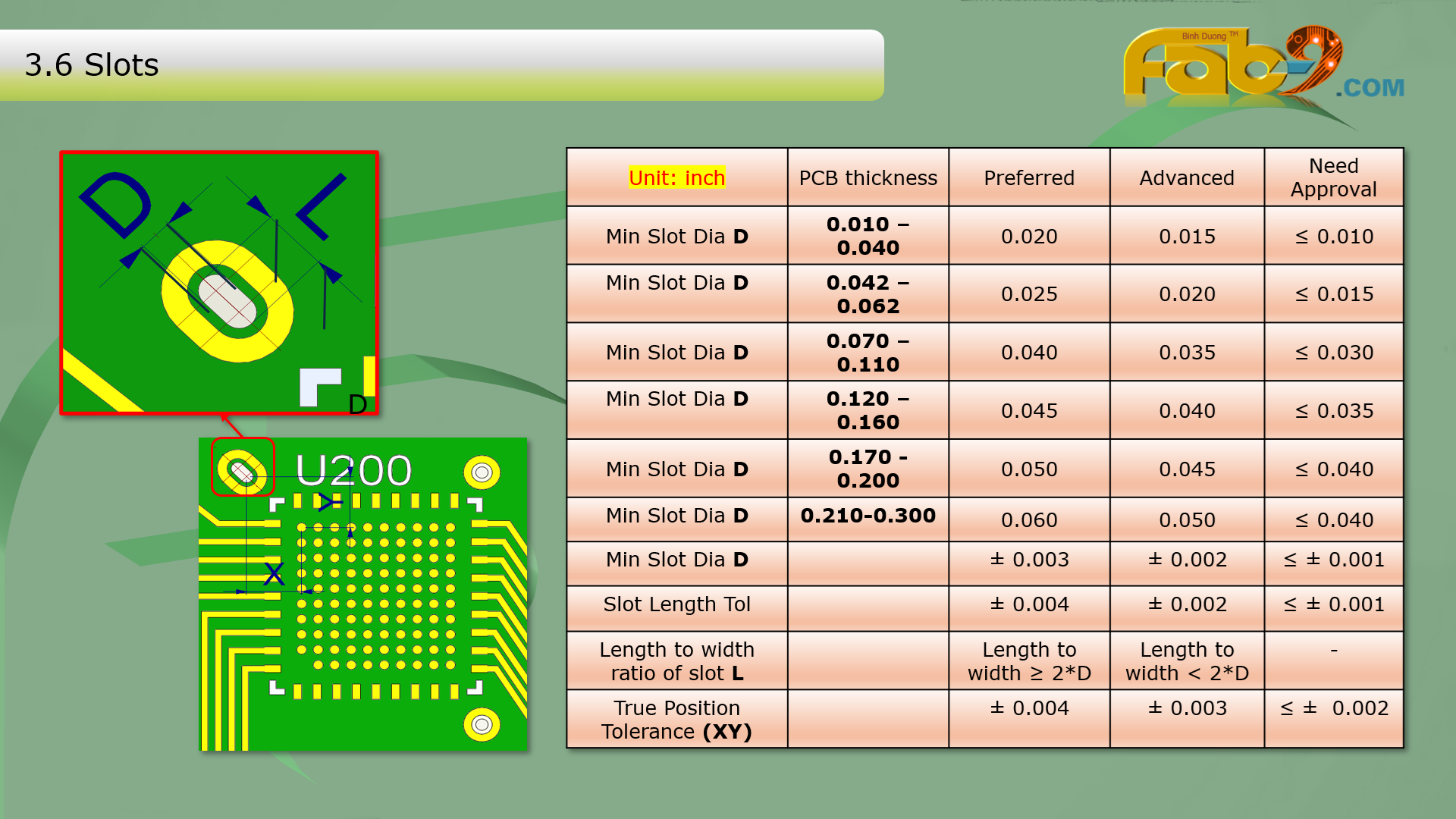

3.7 Slots

3.8 Castellated Holes

3.1

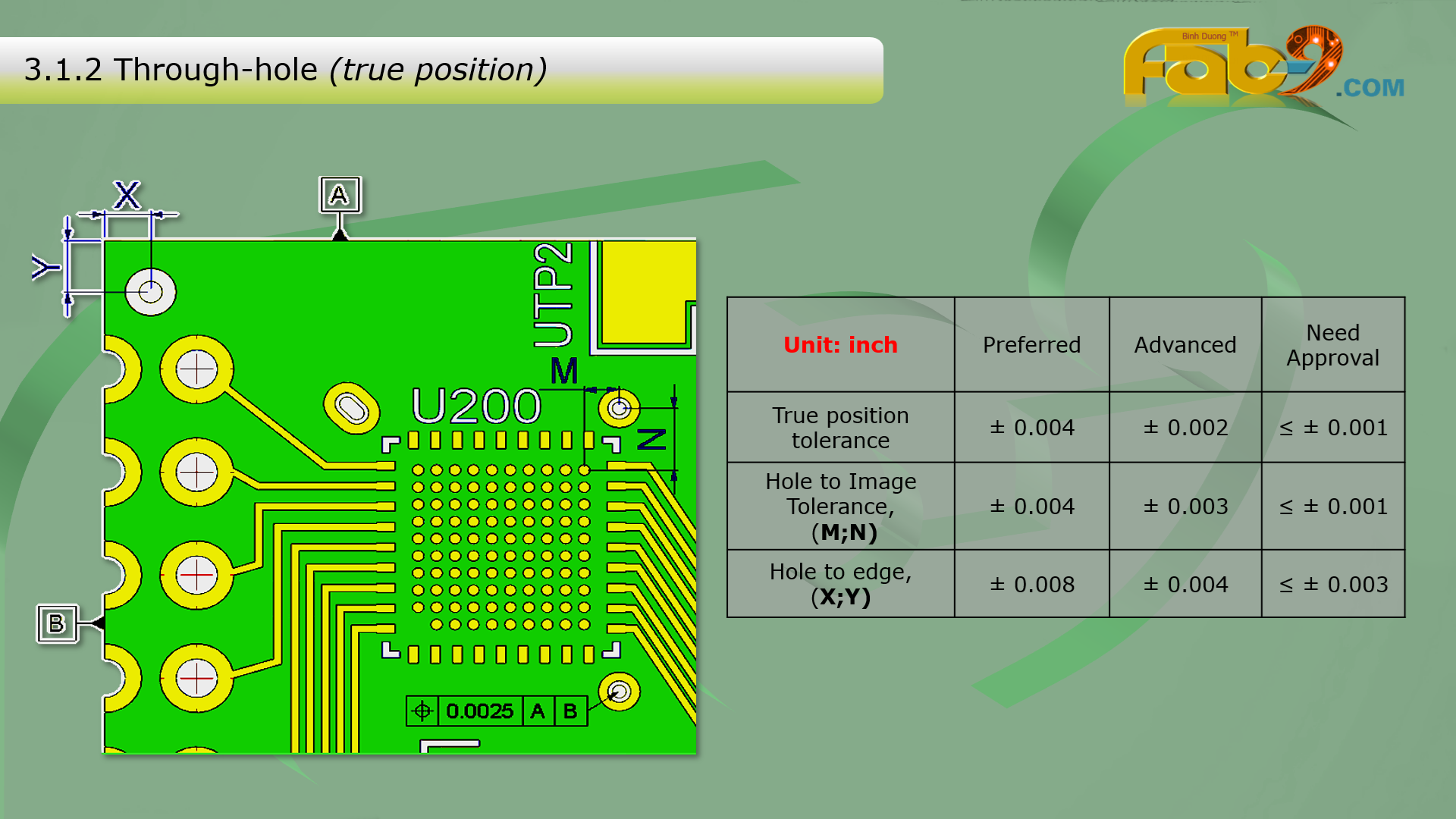

3.1-2

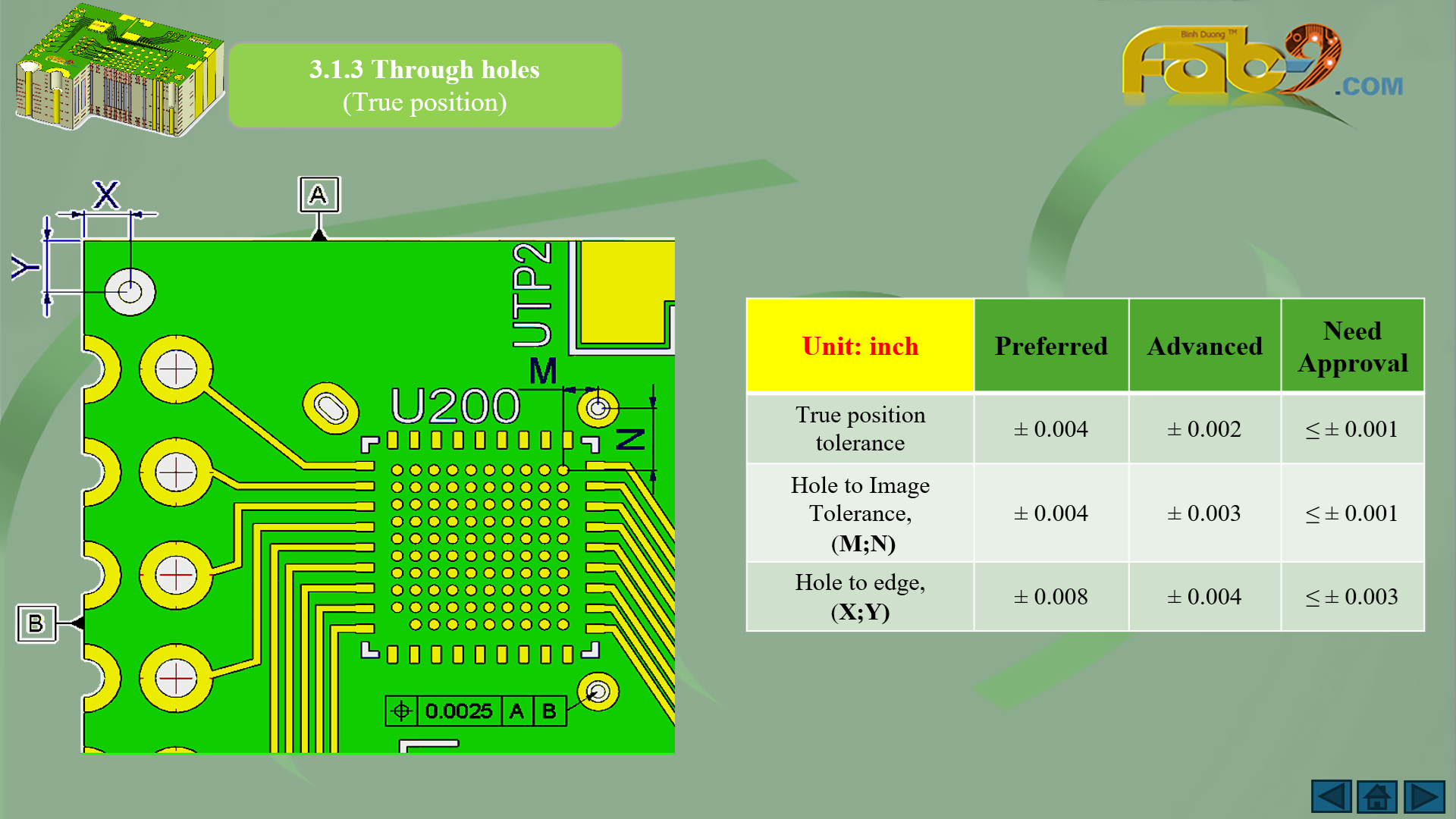

3.1-3

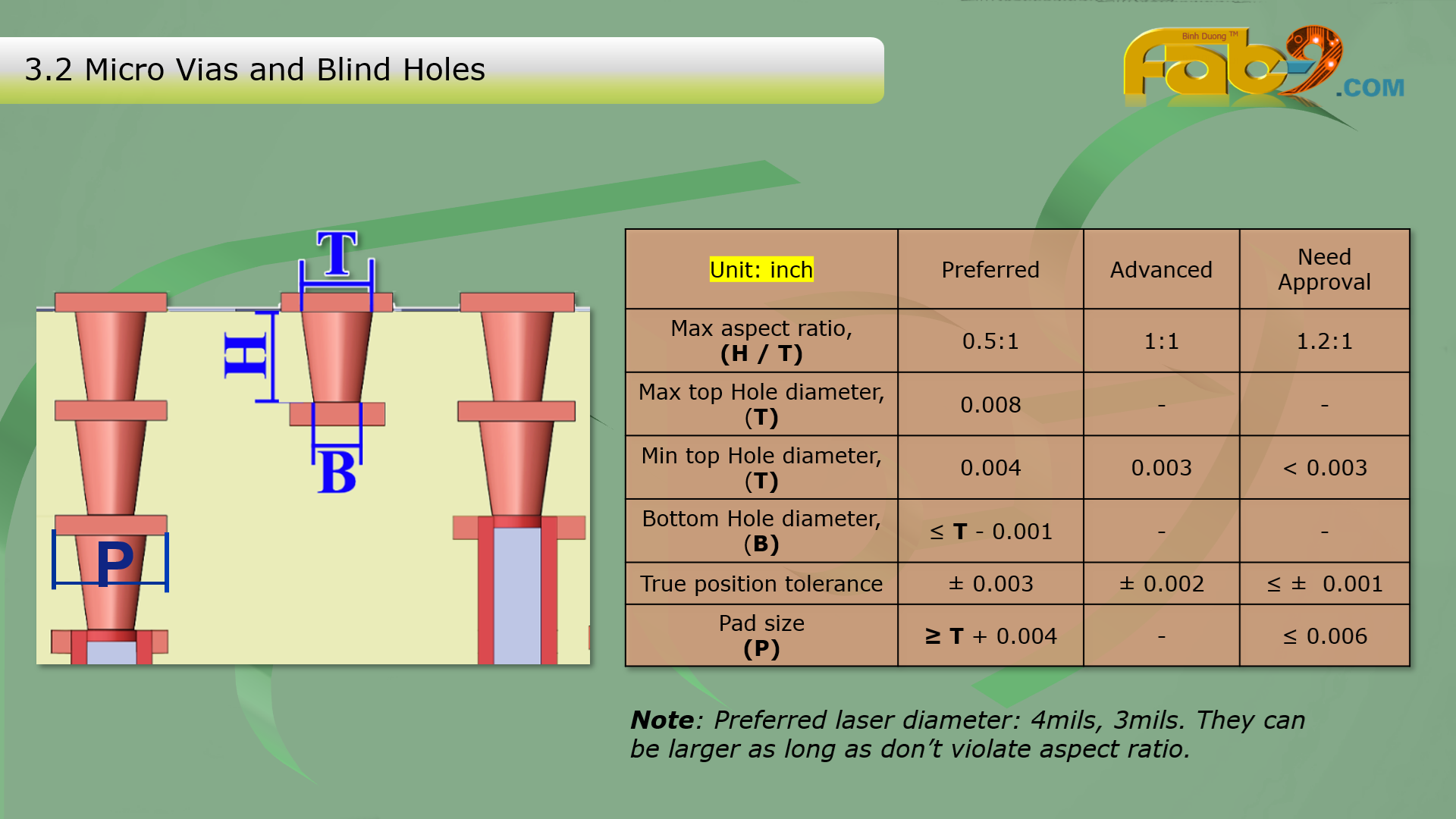

3.2

3.3

3.3-2

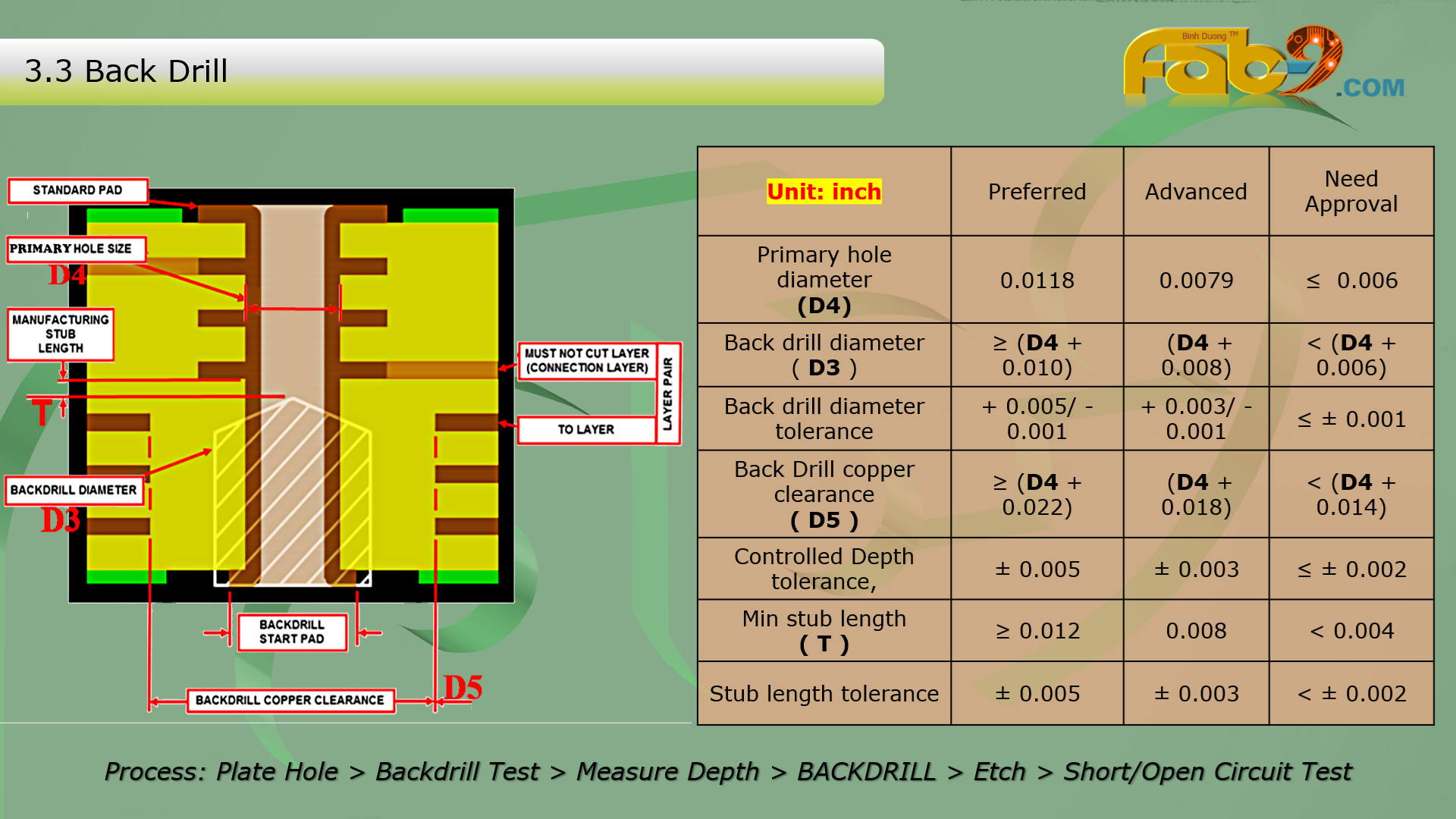

3.4

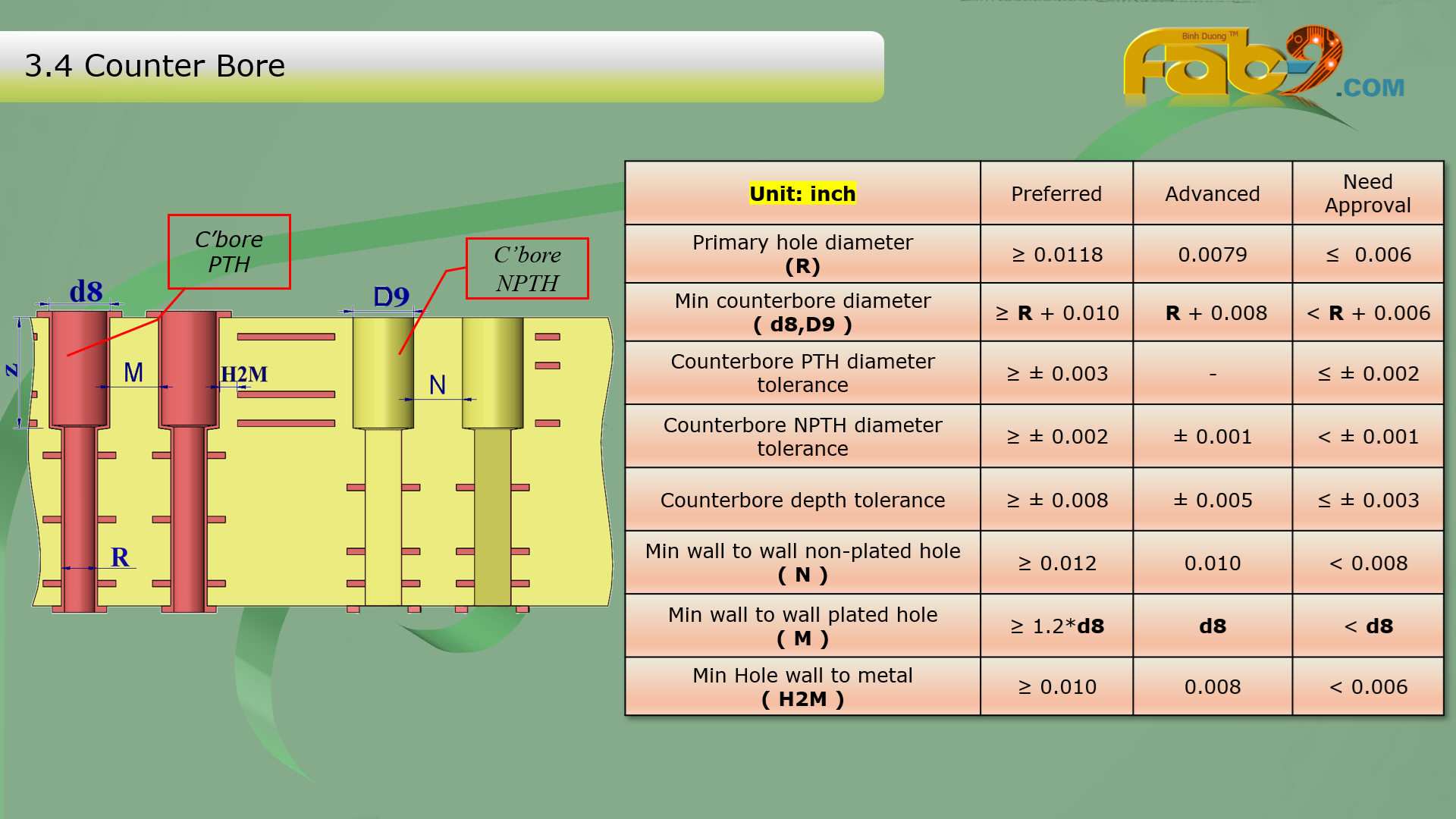

3.5

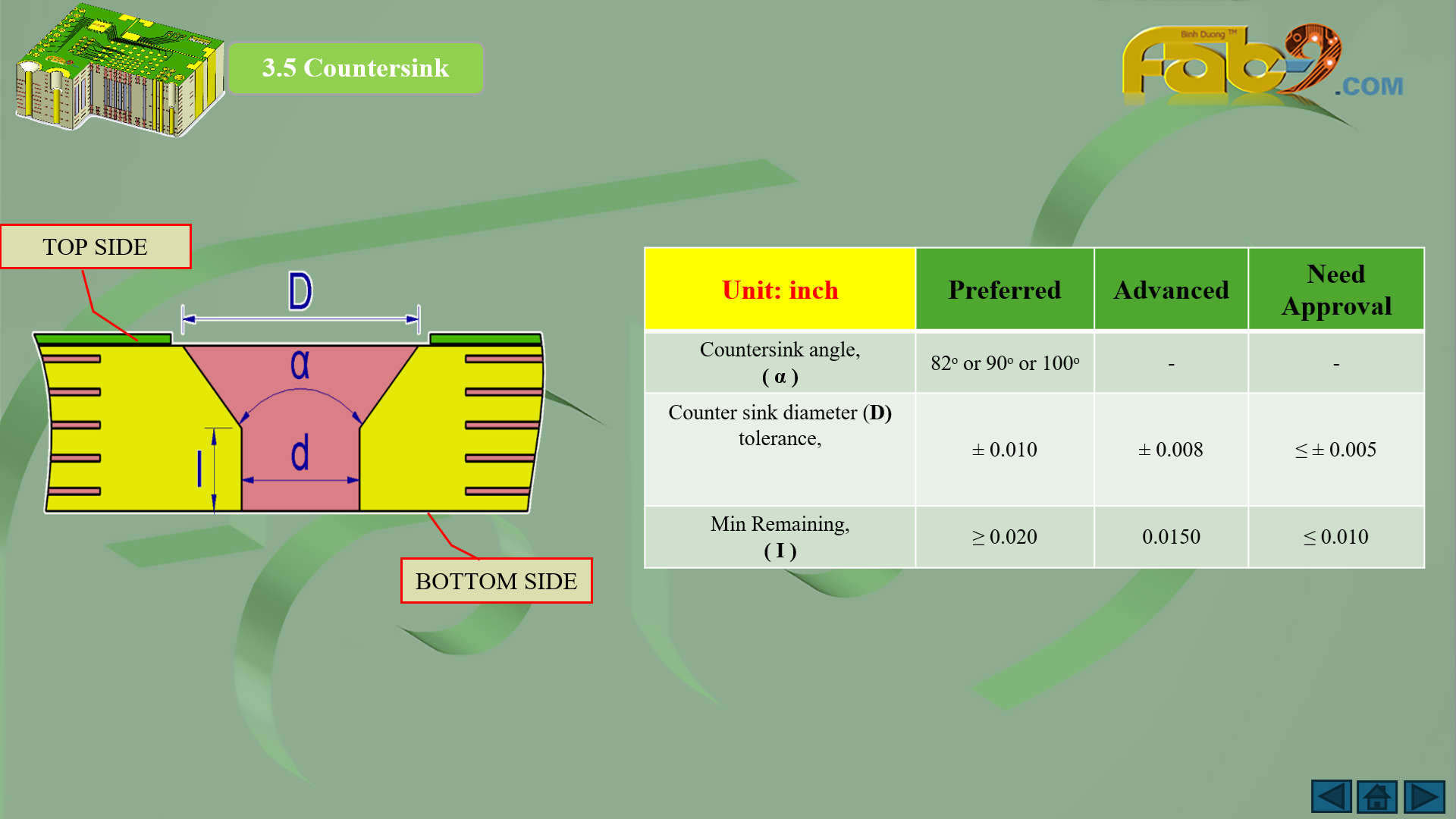

3.6

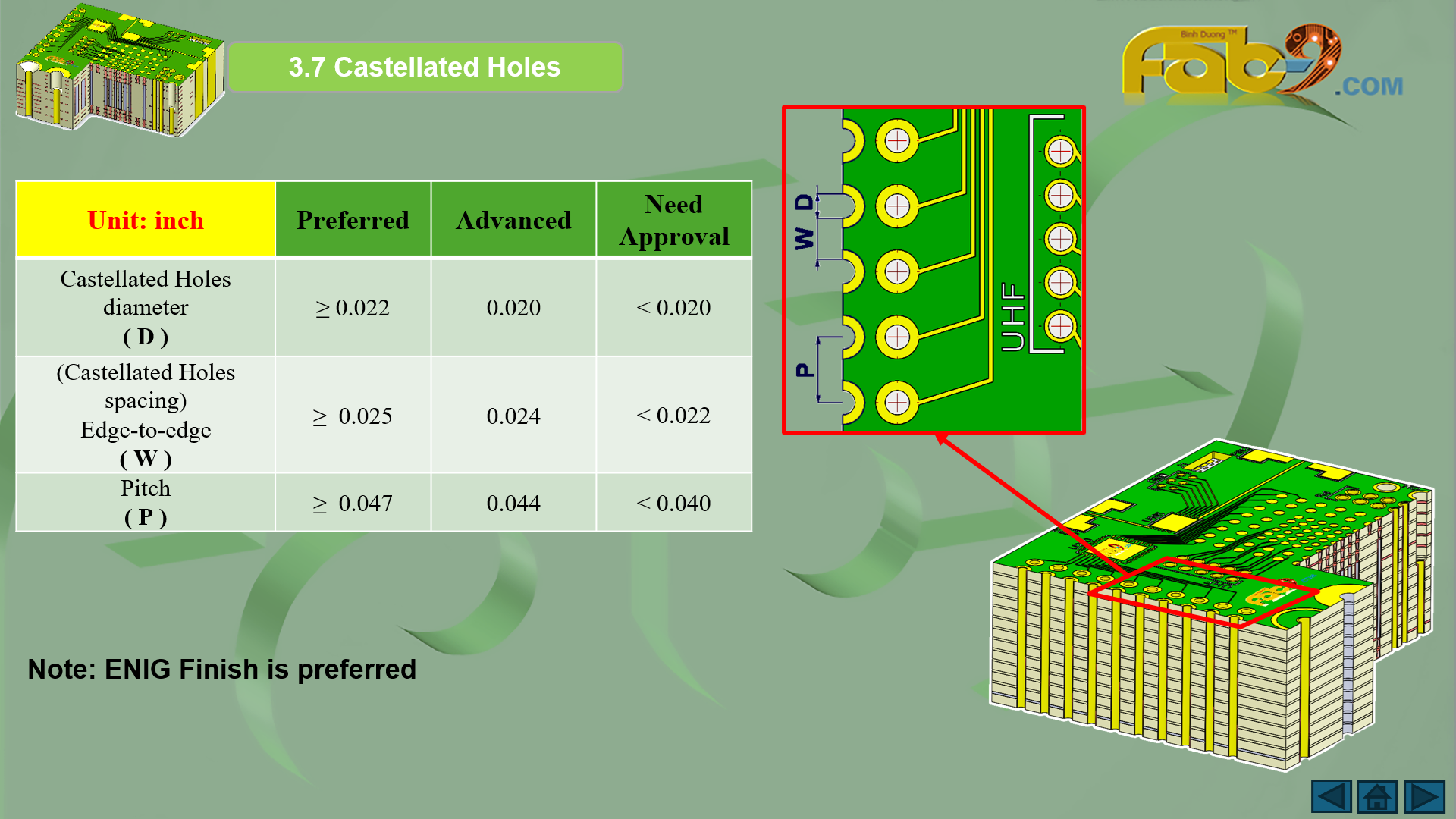

3.7

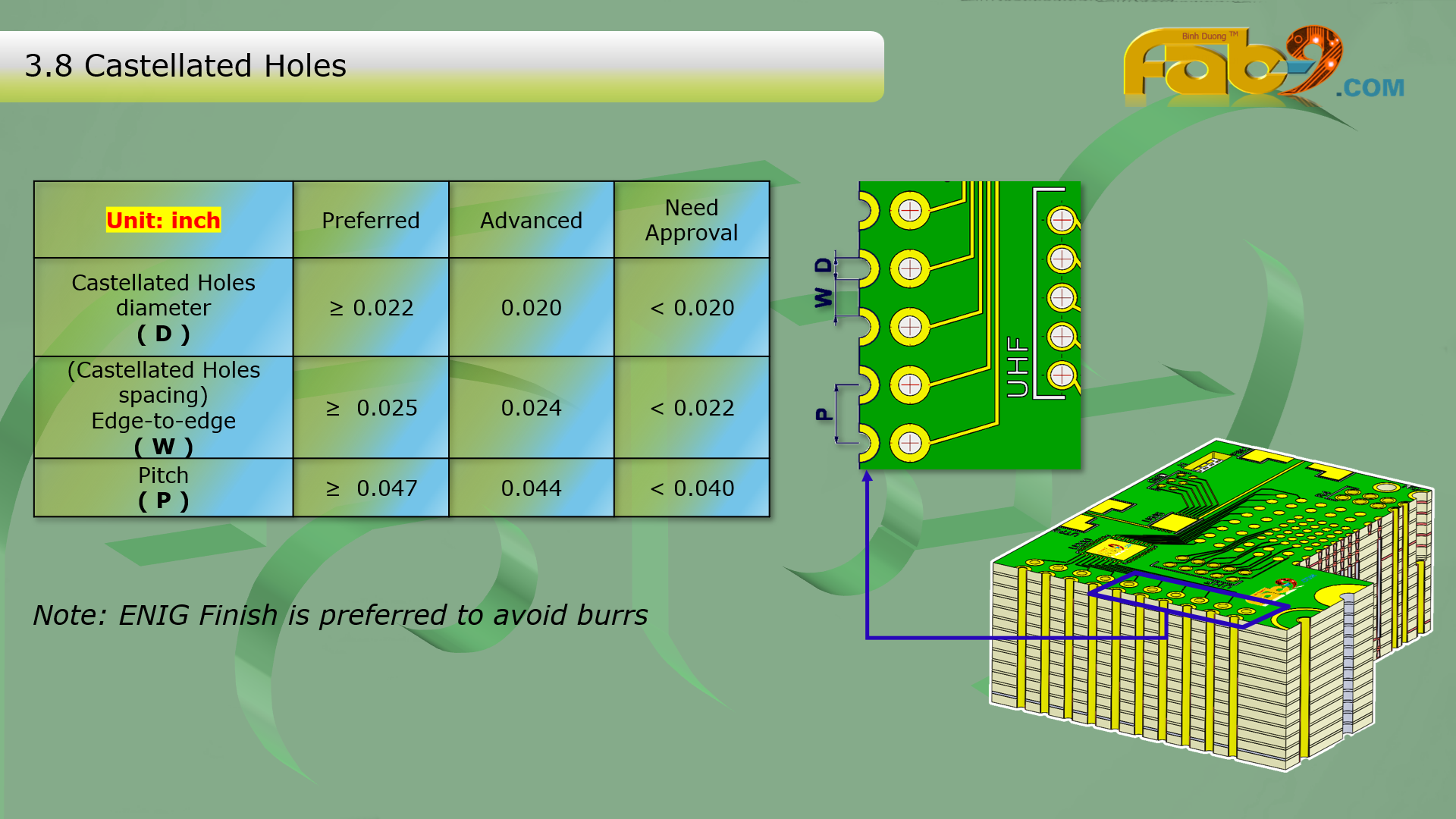

3.8
