Line, Spacing and Annular Ring

🔙 Back to DFM MAIN MENU

Main DFM image

1.1 Surface Features (line, space, pad) vs Total Metal

1.2 Tolerance: Line Width and Pad Diameter

1.3 Surface Metal Thickness Tolerance

1.4 Conductor Current-carrying Capacity

1.5 Annular Ring IPC Standard

1.6 Filled Hole

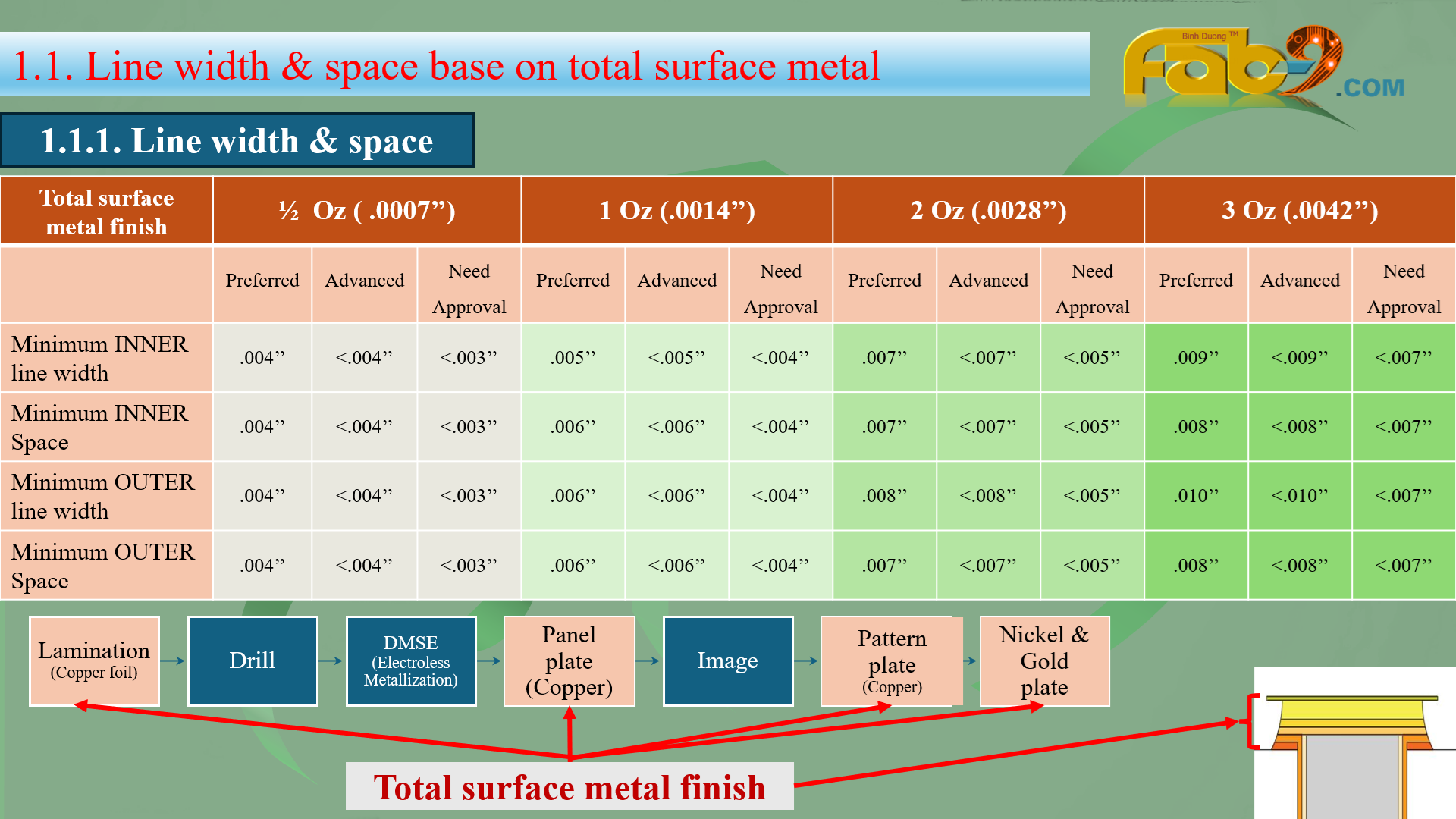

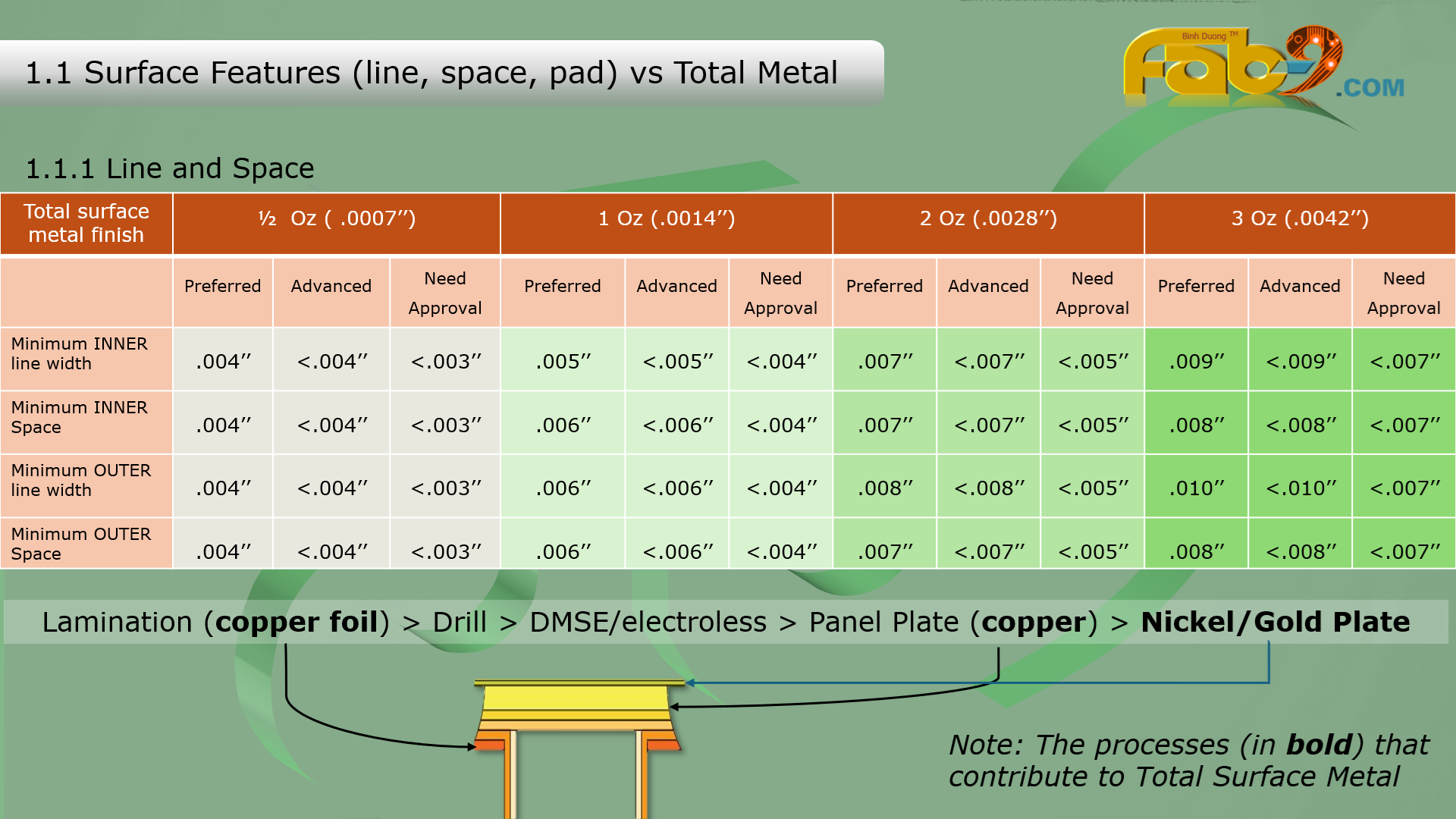

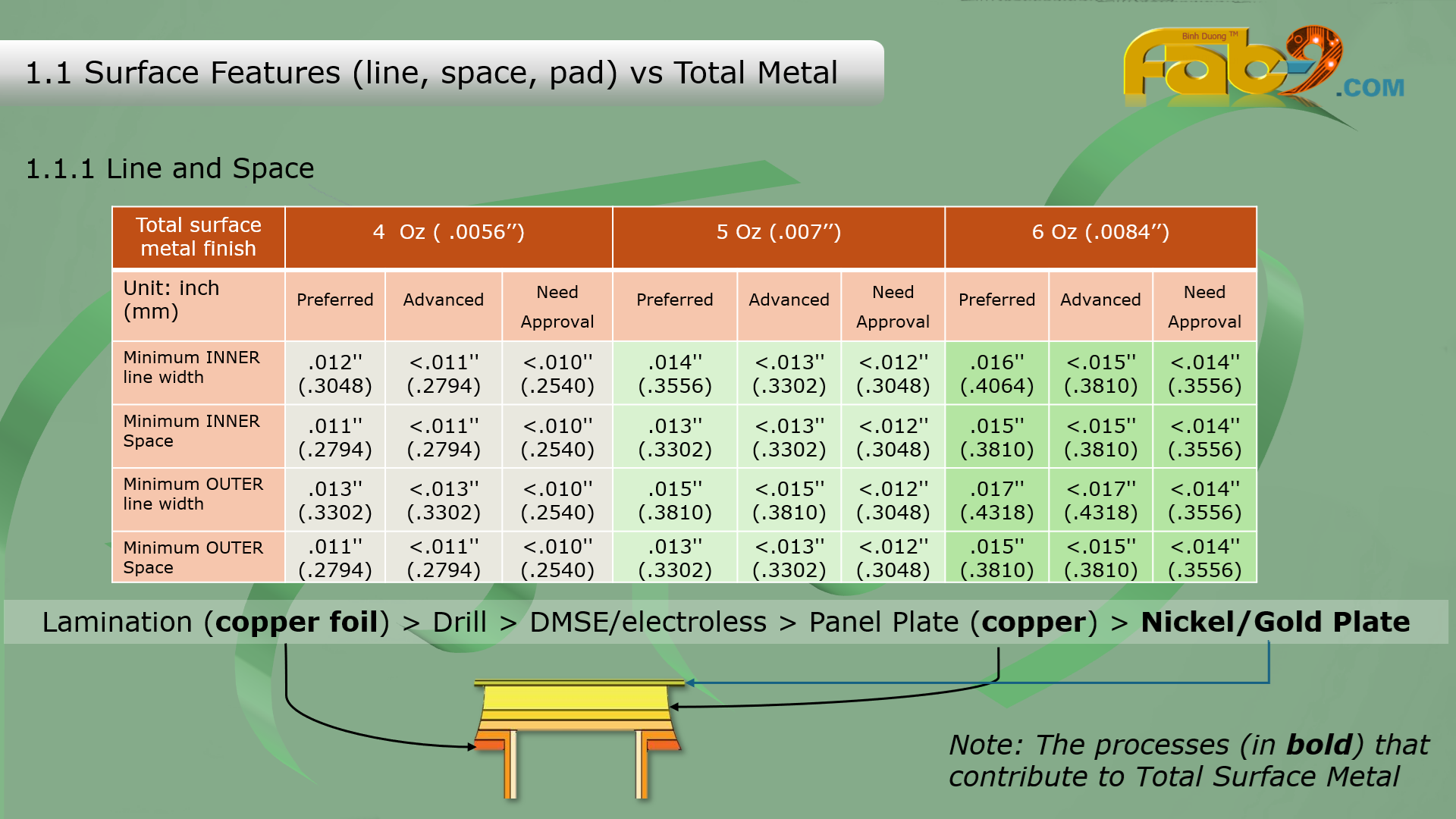

1.1

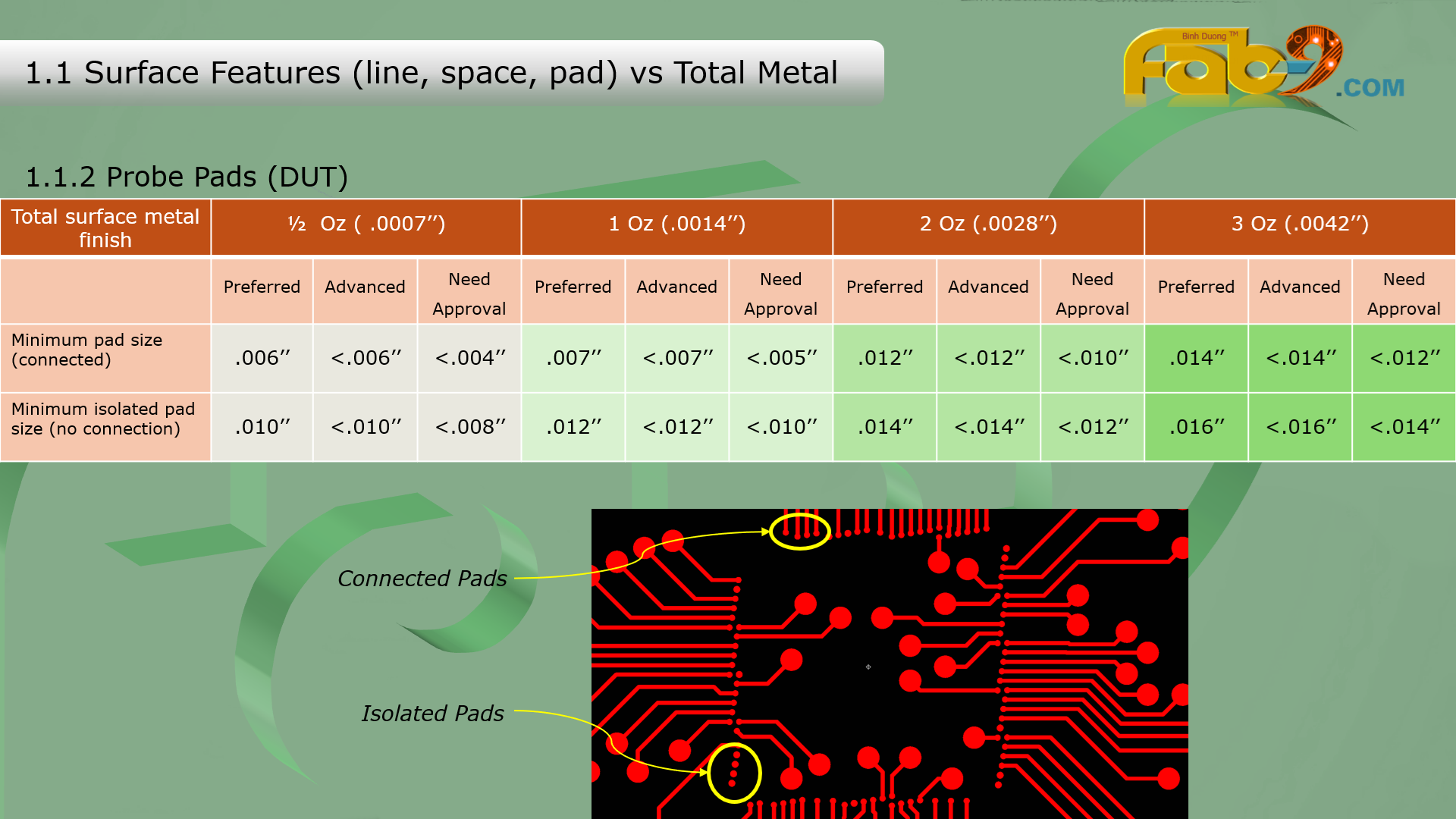

1.1-2

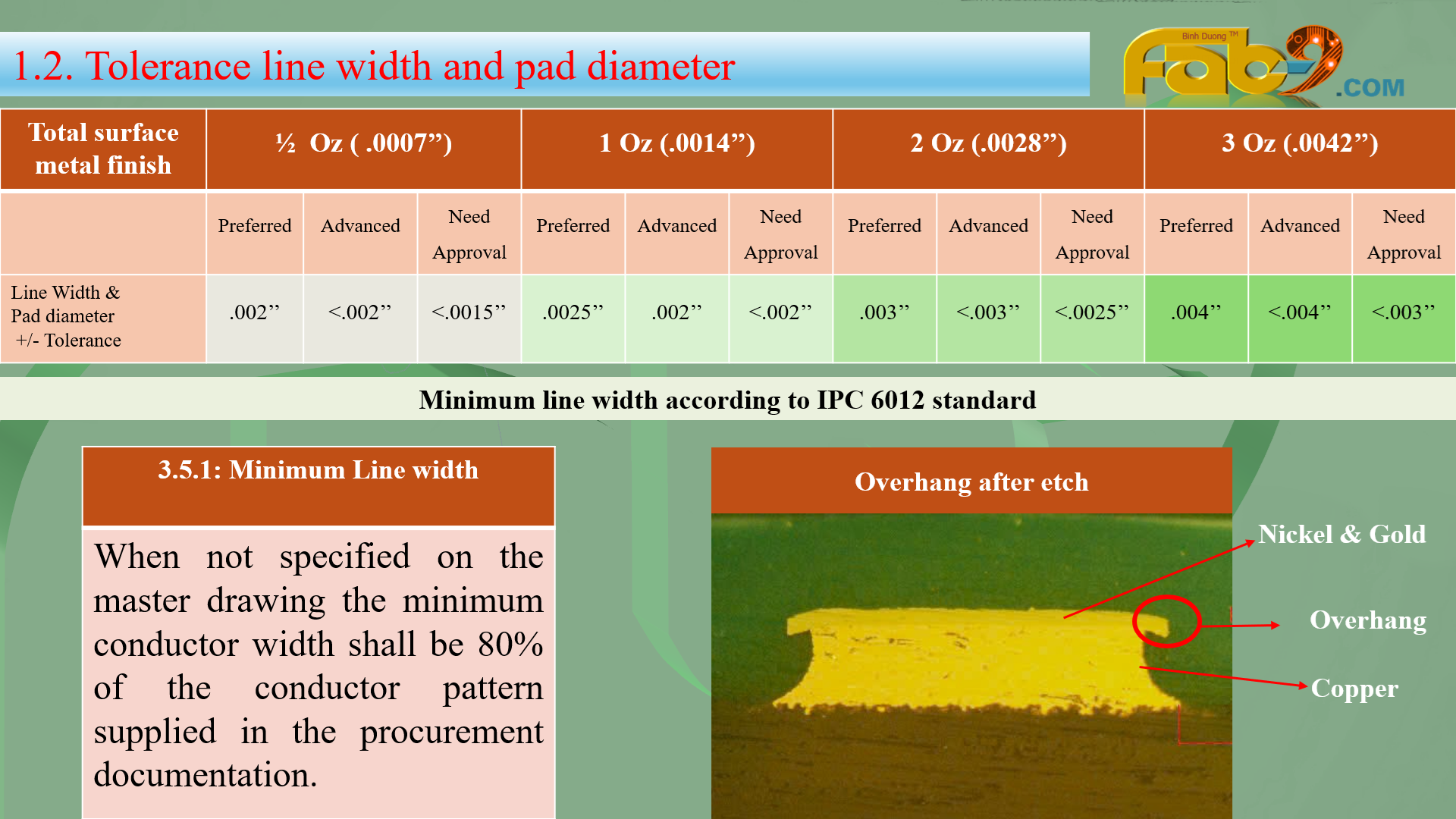

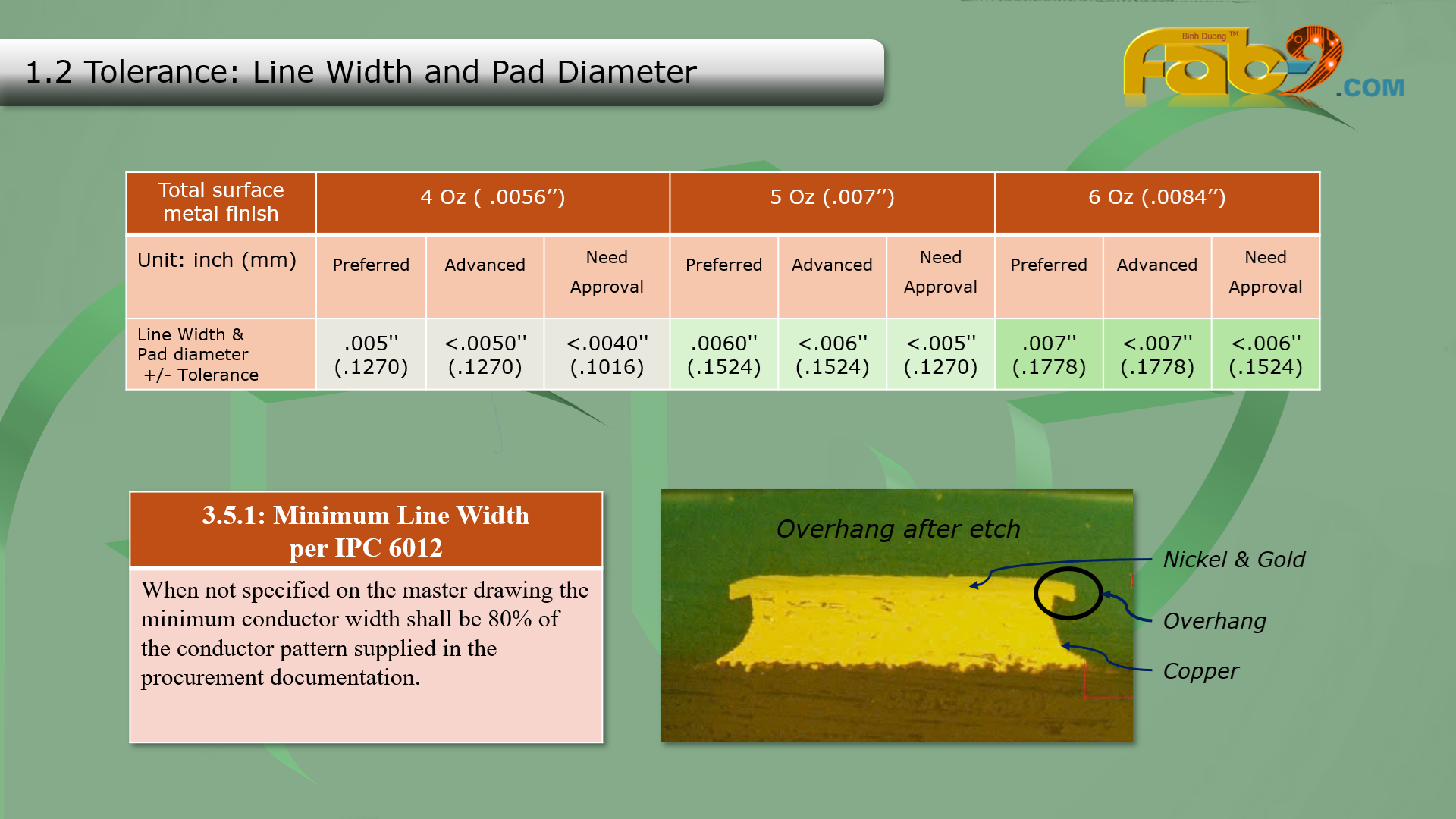

1.2

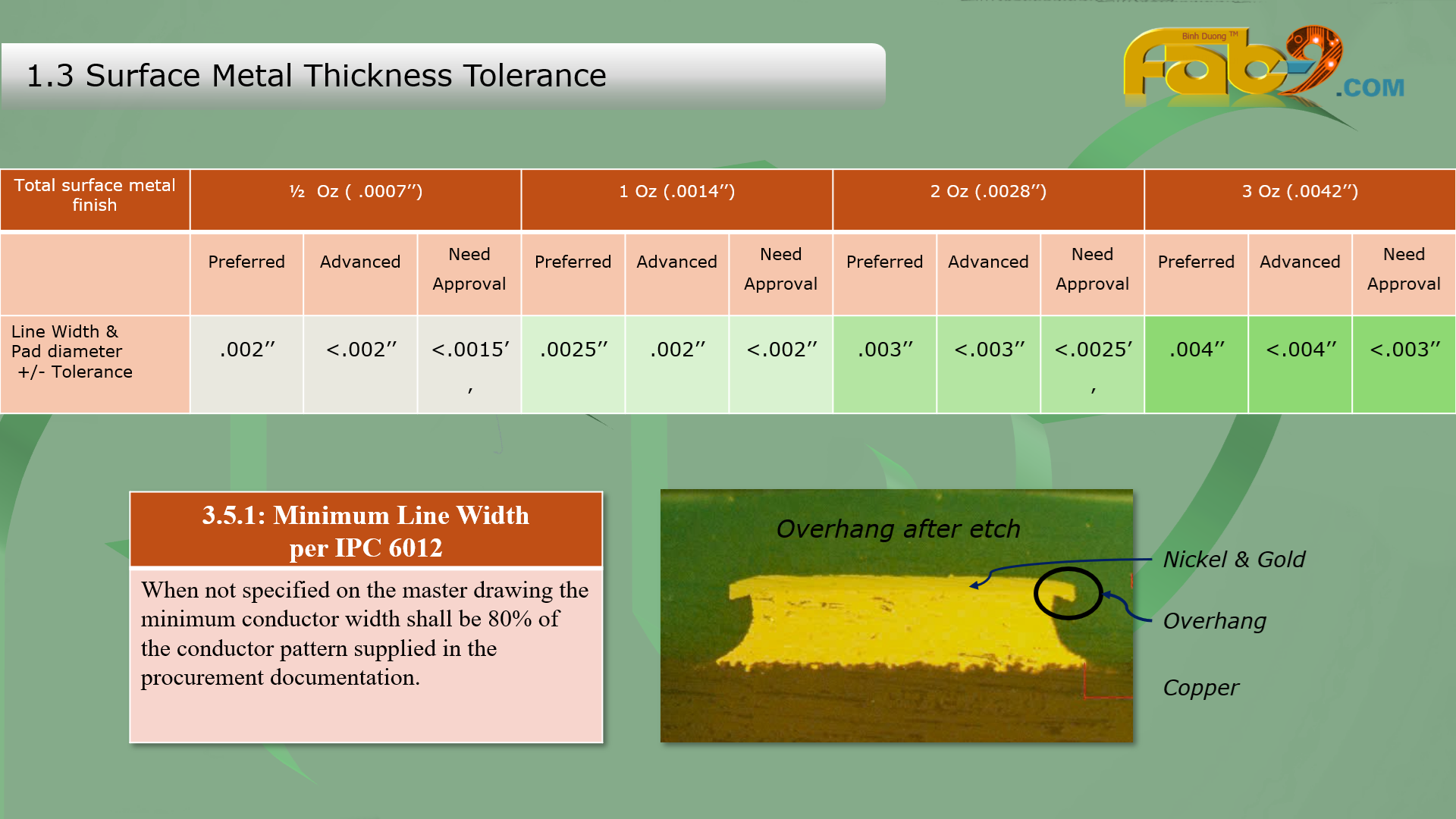

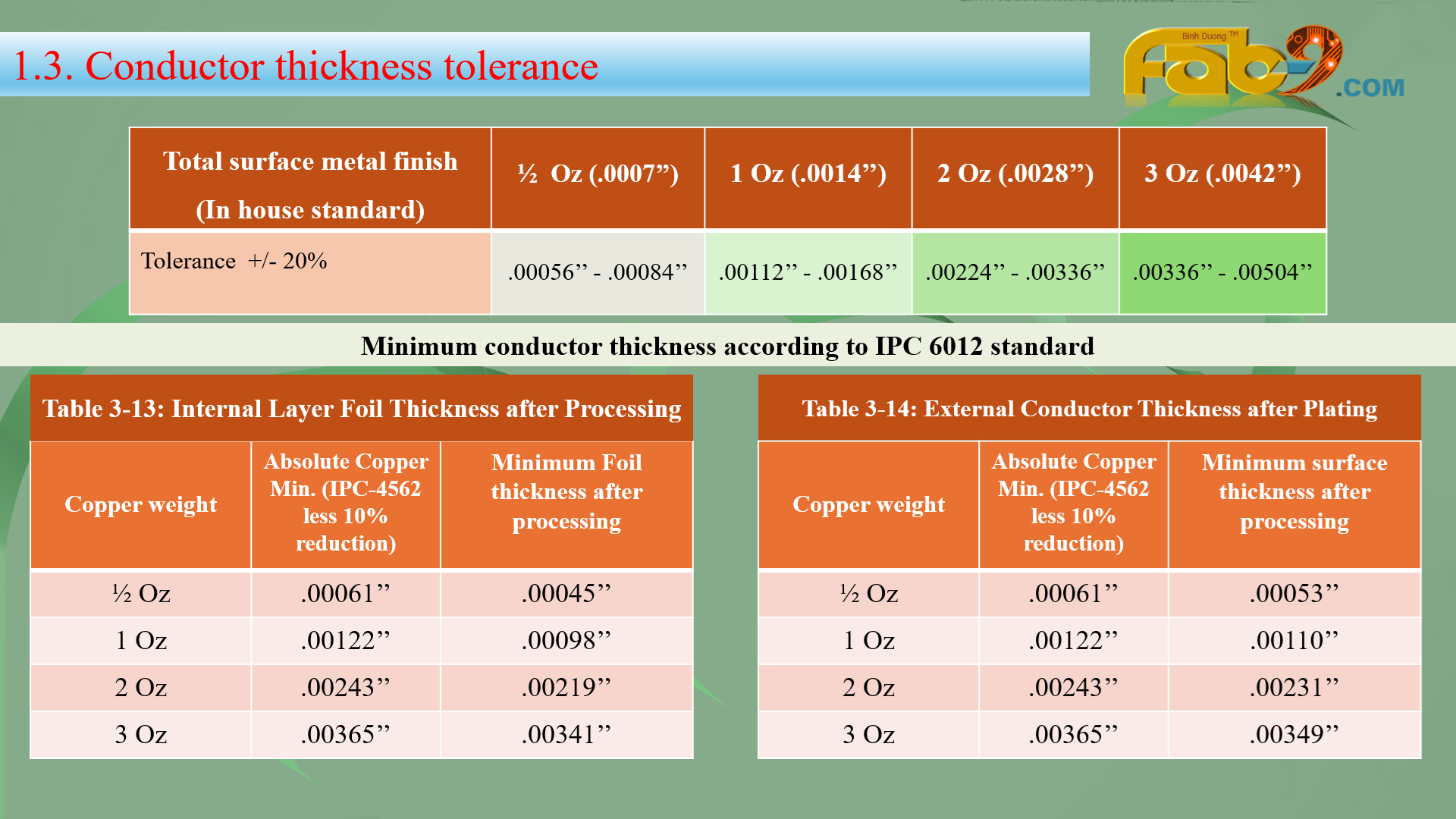

1.3

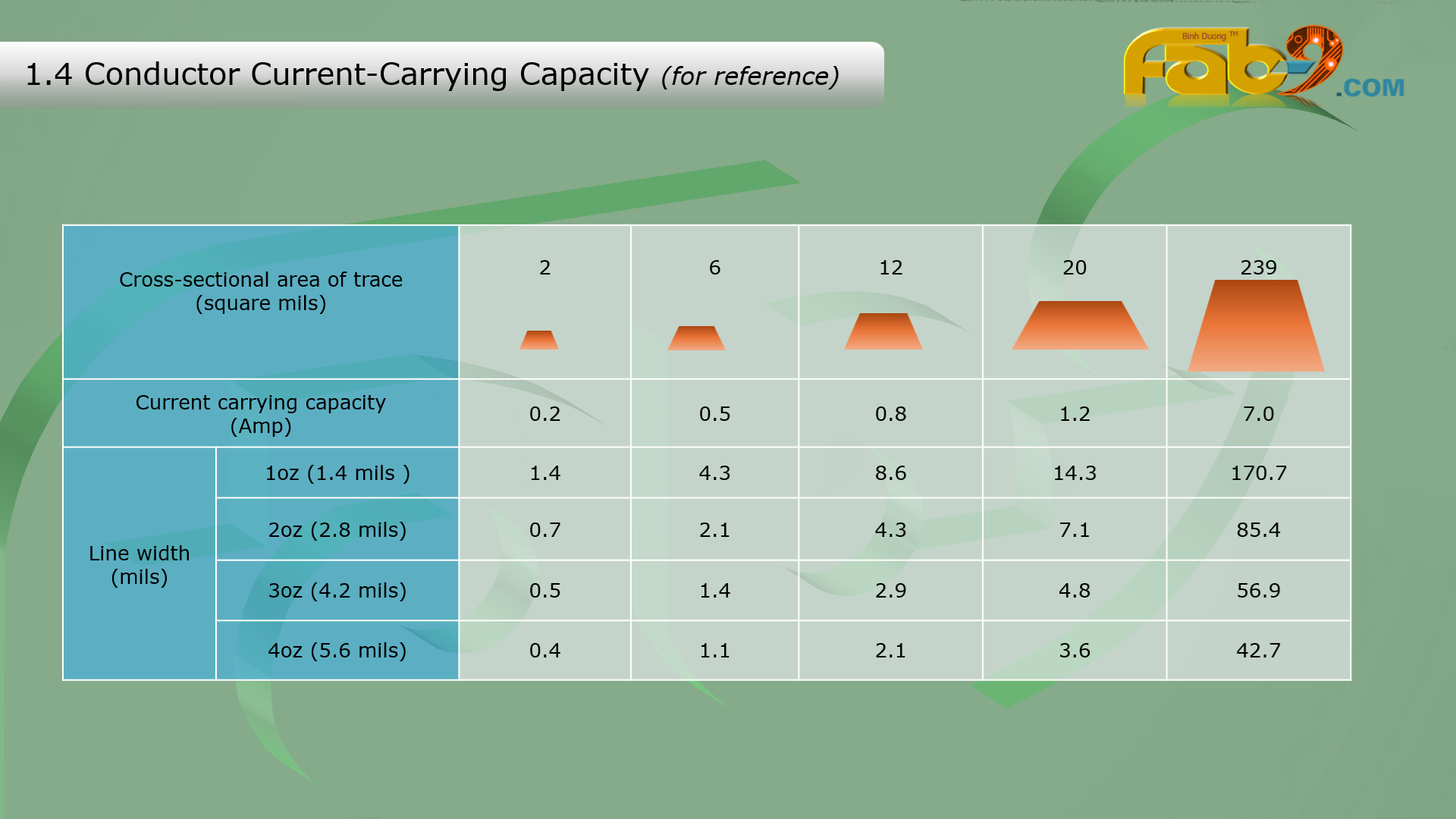

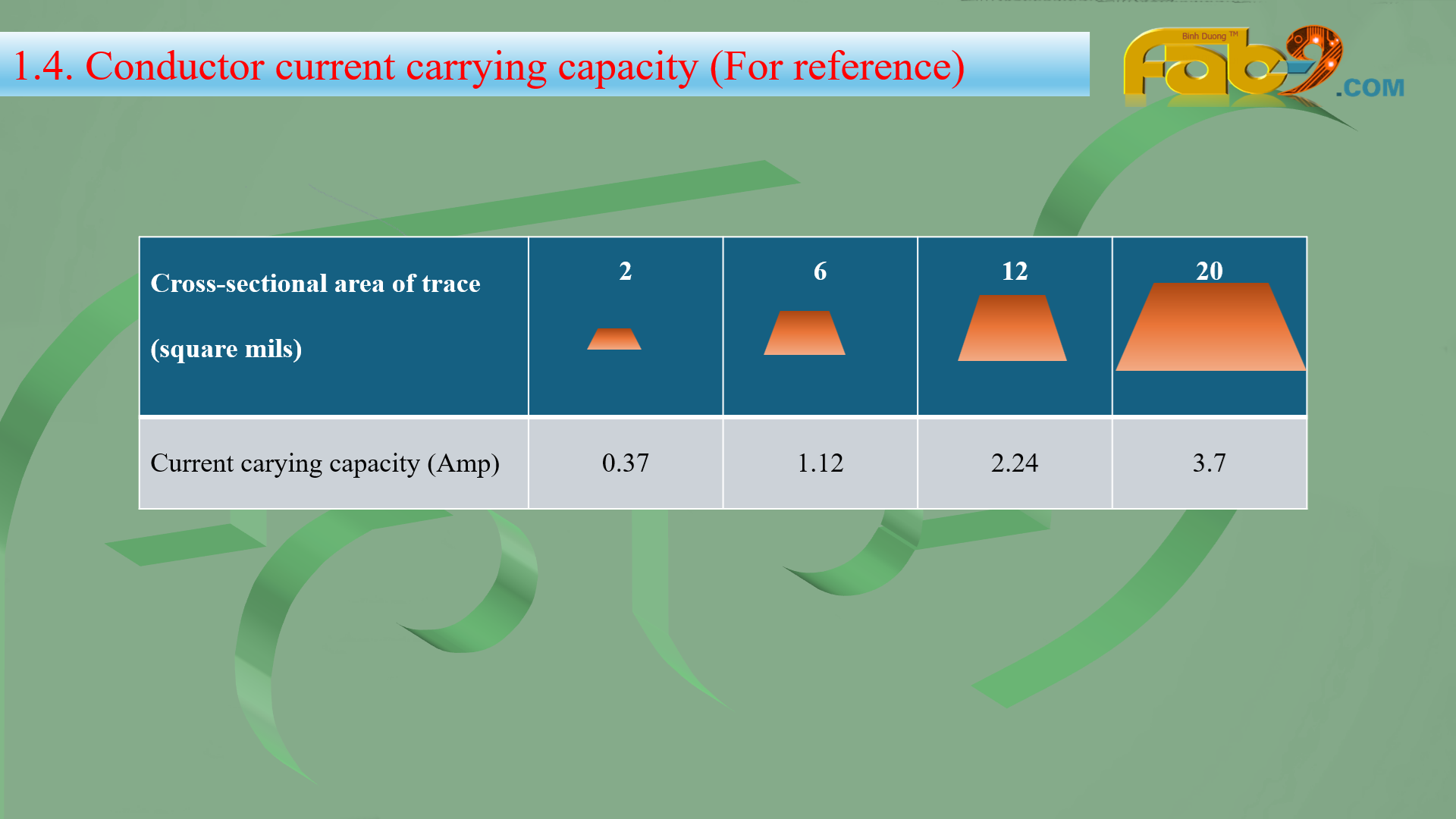

1.4

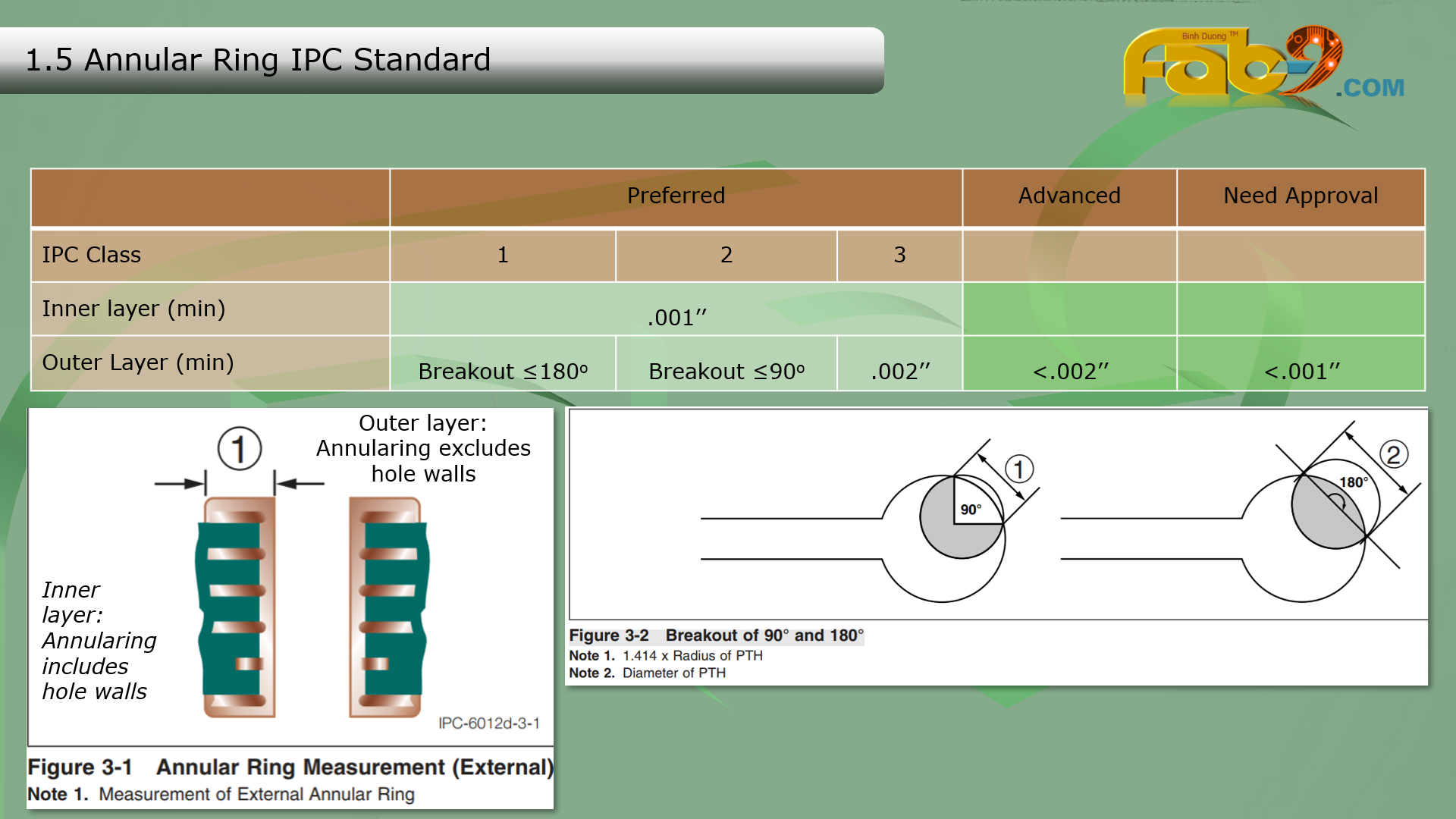

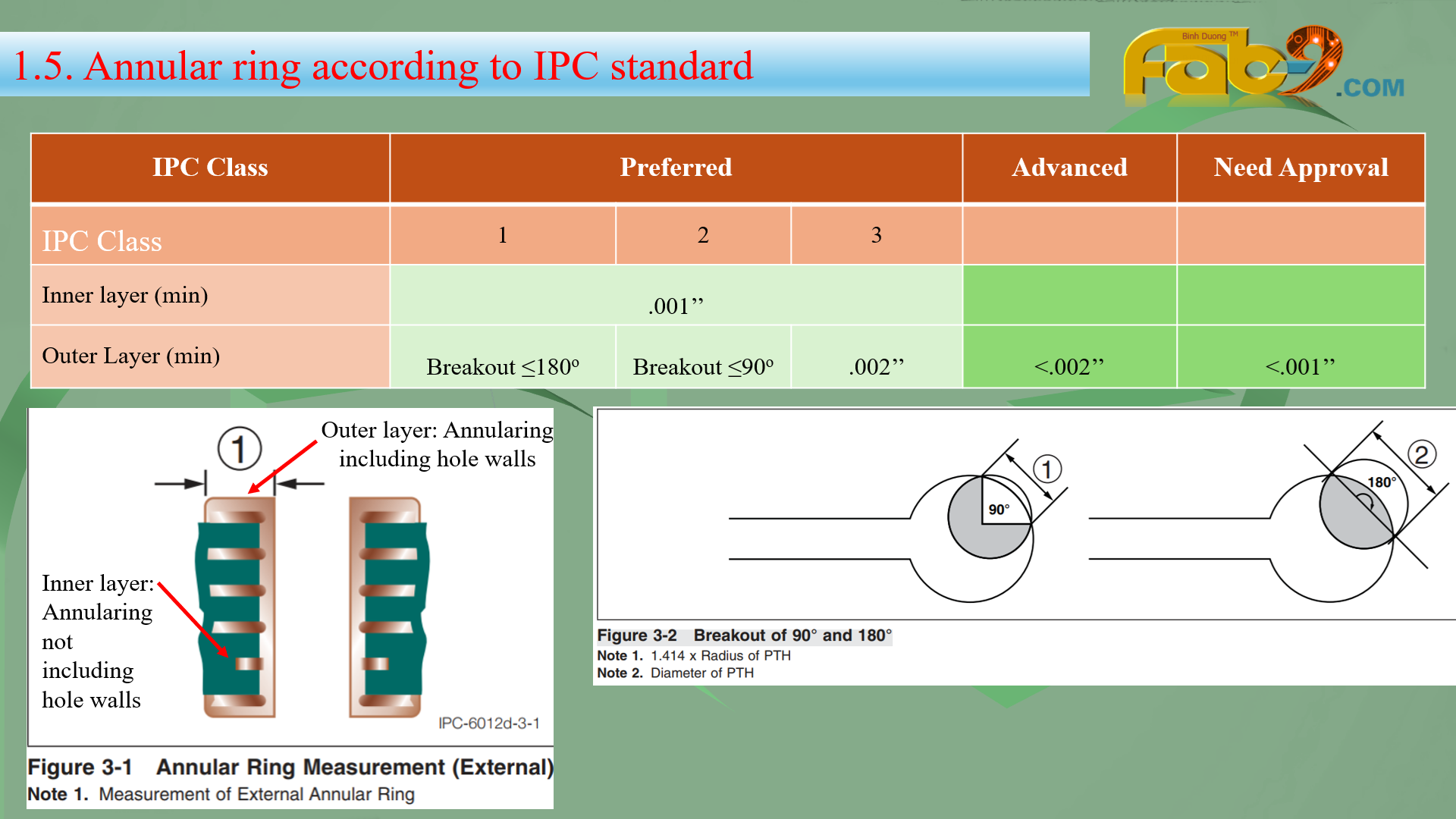

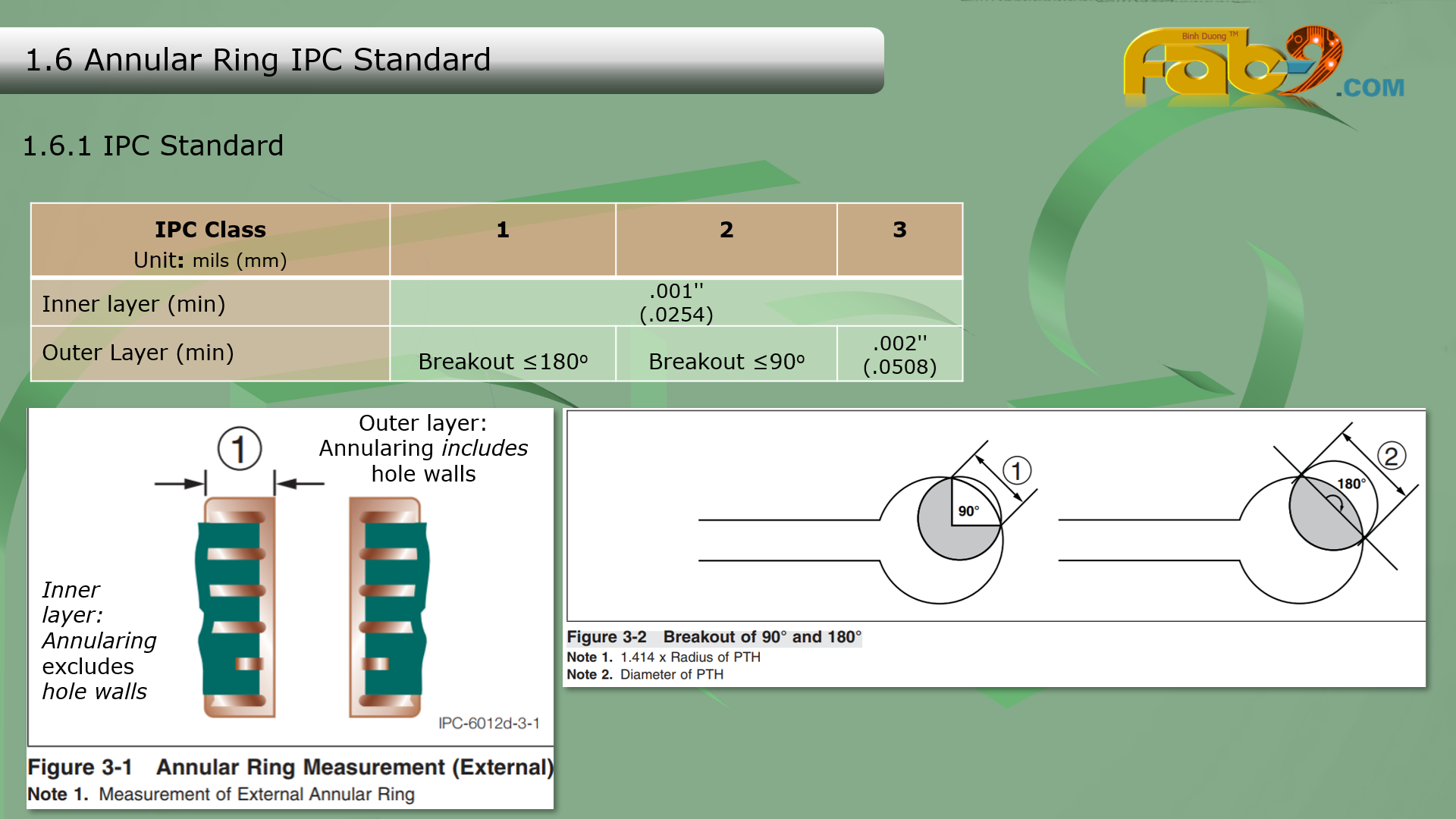

1.5

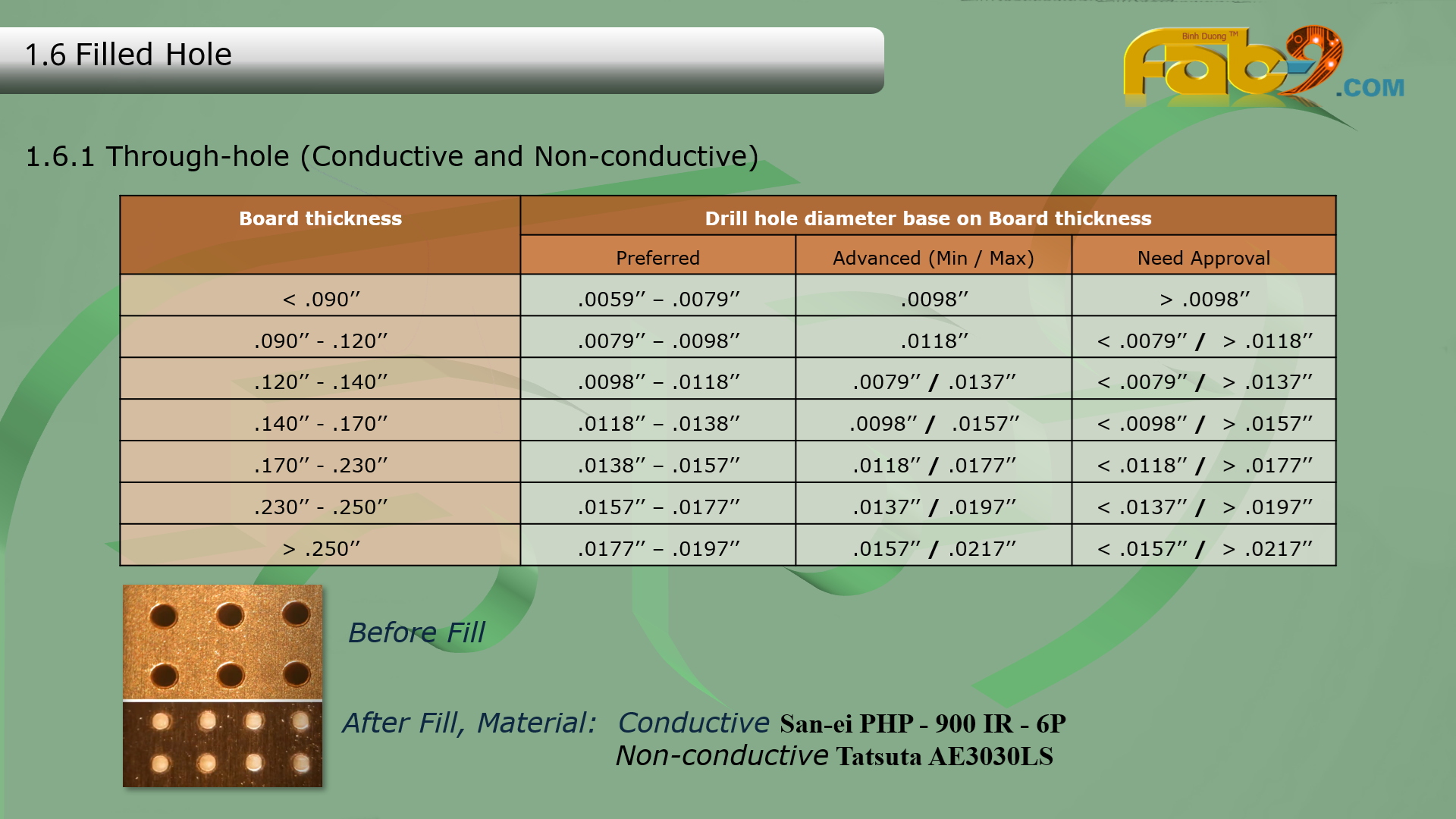

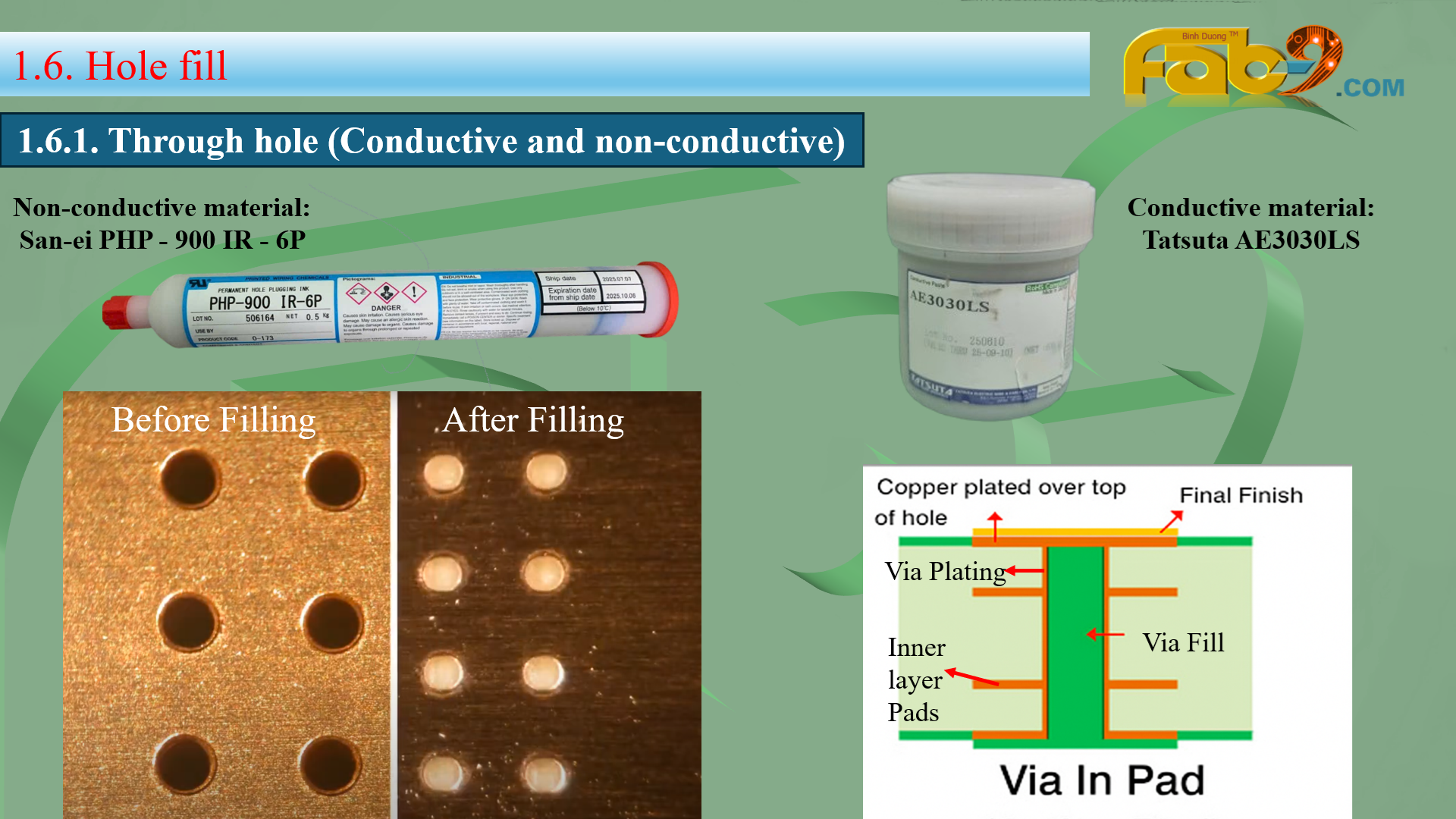

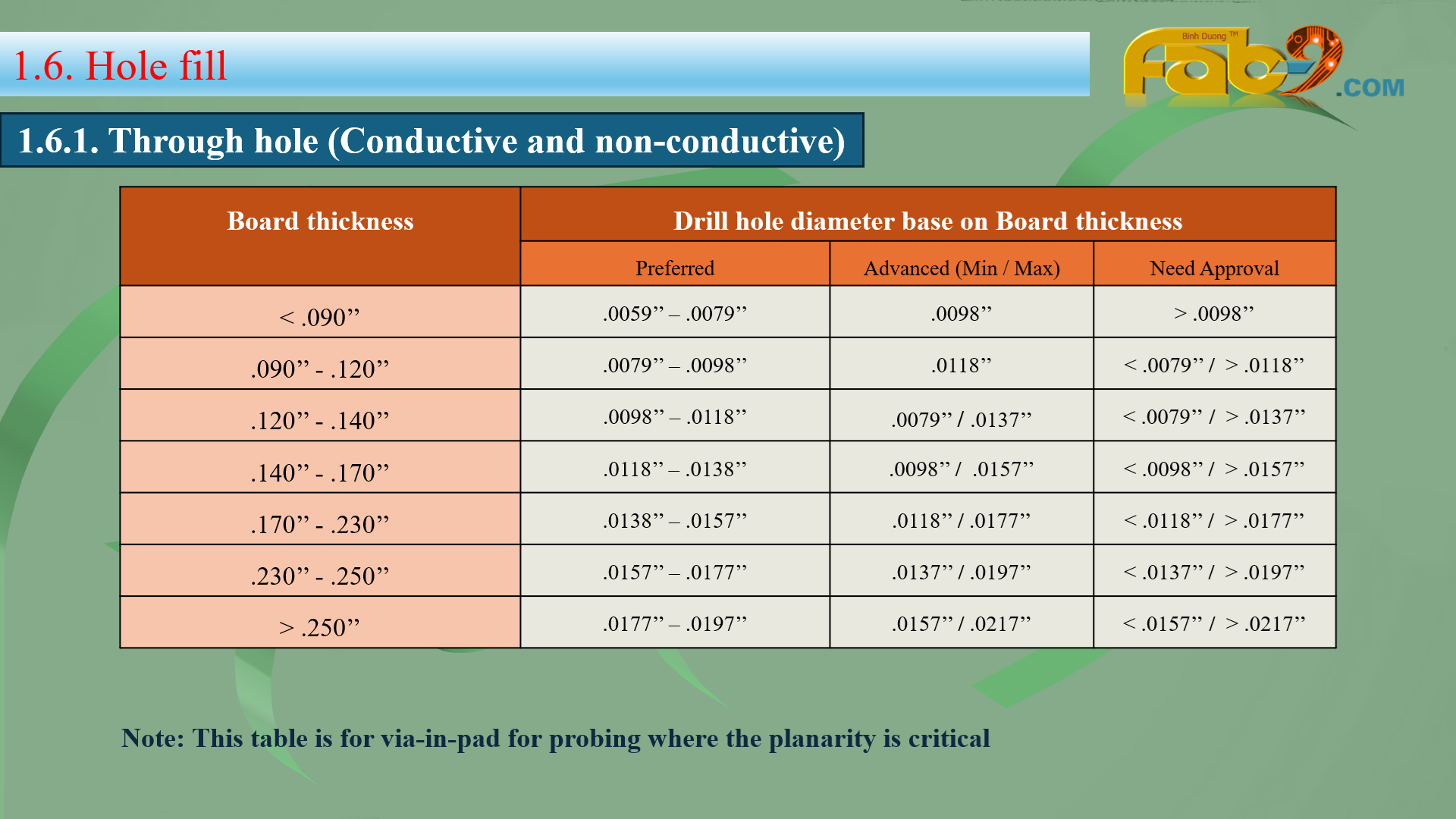

1.6-1

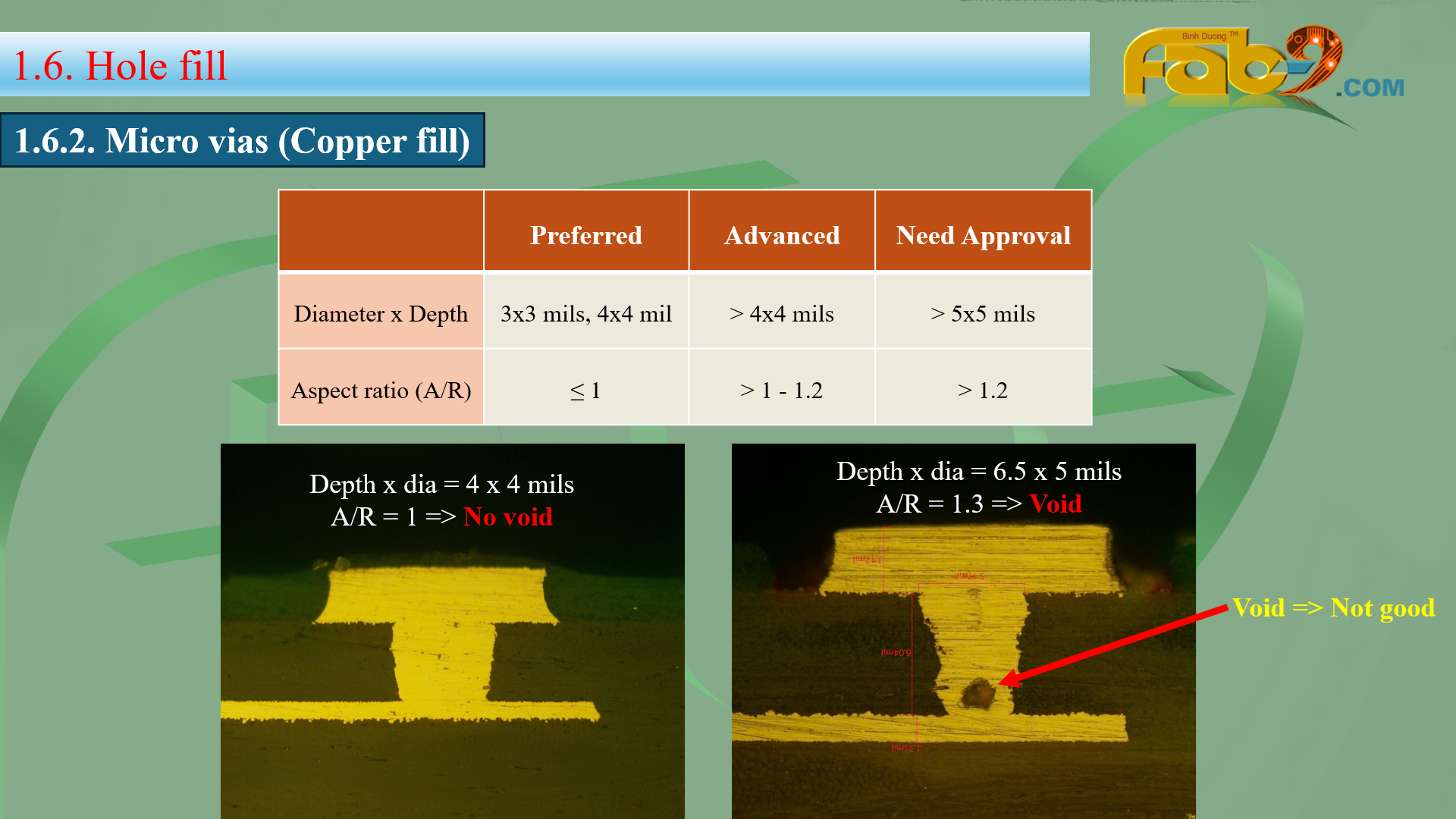

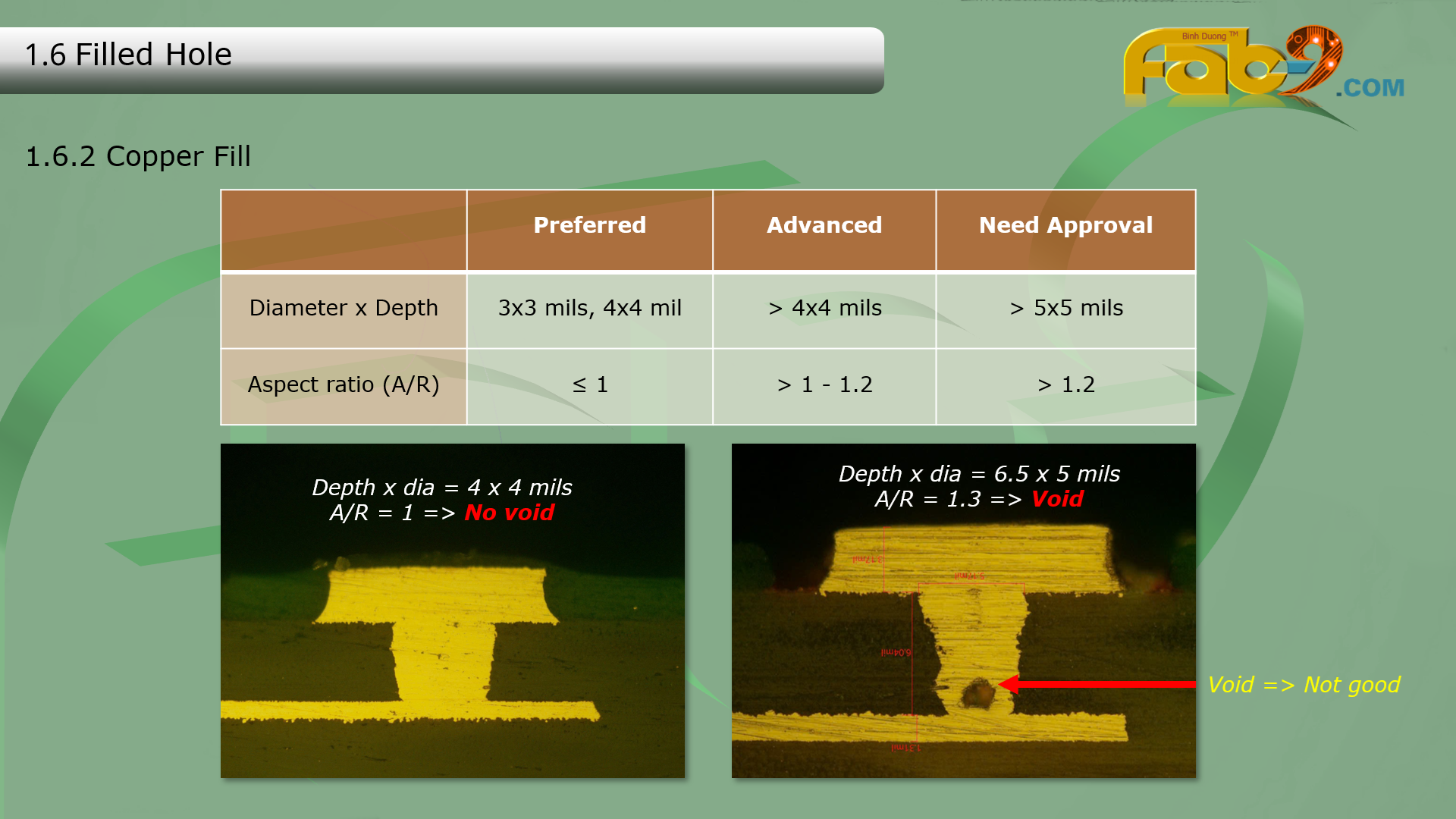

1.6-2
